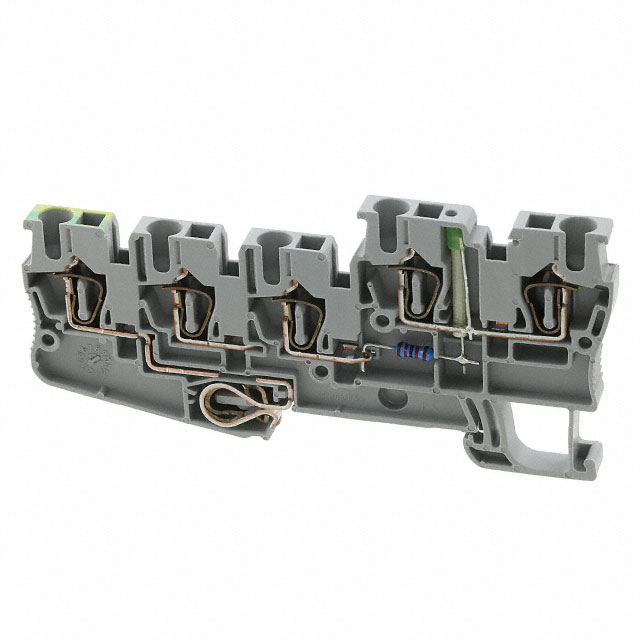

Phoenix Contact
| Part Number | 3209183 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN TERM BLK FEED THRU 12-28AWG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8093 pcs | Data sheet | 1.3209183.pdf2.3209183.pdf |
| Wire Gauge or Range - mm² | 0.08-4mm² | Wire Gauge or Range - AWG | 12-28 AWG |
| Voltage - UL | 300V | Voltage - IEC | 24V |
| Type | Feed Through, Isolated | Termination Style | Push In, Spring |
| Terminal - Width | 5.2mm | Stripping Length | 10mm |
| Series | CLIPLINE STIO | Other Names | 277-15290 3209183-ND STIO 2 5/4-PE/2B/L-LA24GN/O-M |
| Number of Positions | 5 | Number of Levels | 2; Connected and Grounded |
| Material Flammability Rating | UL94 V-0 | Material - Insulation | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Fuse Type | - | Features | LED |
| Disconnect Type | - | Detailed Description | Terminal Block Connector 5 Position Feed Through, Isolated Gray 12-28 AWG |
| Current - UL | 10A | Current - IEC | 18A |
| Color | Gray |
