Phoenix Contact
| Part Number | 3208582 | Manufacturer | Phoenix Contact |
|---|---|---|---|

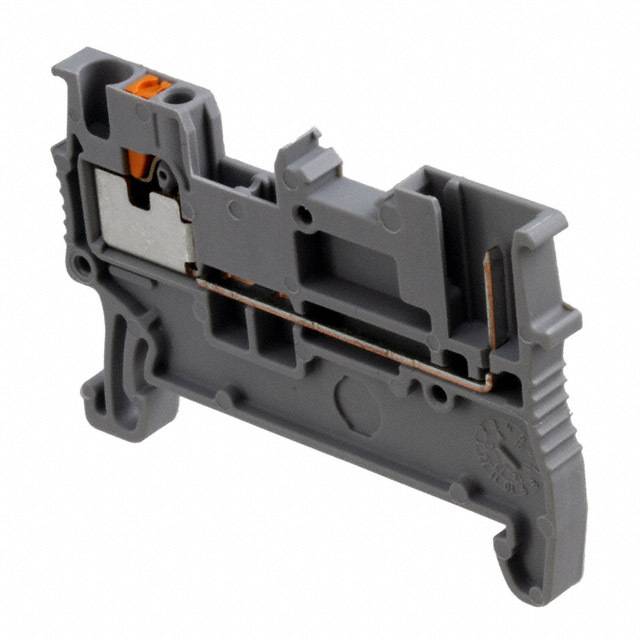

| Description | TERM BLK PLUG 2POS 3.5MM GRAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66435 pcs | Data sheet | 3208582.pdf |
| Wire Gauge or Range - mm² | 0.14-1.5mm² | Wire Gauge or Range - AWG | 14-26 AWG |
| Voltage - UL | 600V | Voltage - IEC | 500V |
| Type | Plug Connection | Termination Style | Plug Receptacles, Push In, Spring |
| Terminal - Width | 3.5mm | Stripping Length | 8mm |
| Series | CLIPLINE PT | Other Names | 277-9806 PT1,5/S/1P PT15S1P |
| Operating Temperature | - | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | DIN Rail |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 4 Weeks |
| Length | 1.811" (46.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Color | Gray | Height (Max) | 1.555" (39.50mm) |
| Features | - | Detailed Description | 2 Position Terminal Block Gray Plug Connection 3.5mm |
| Current - UL | 5A | Current - IEC | 17.5A |
