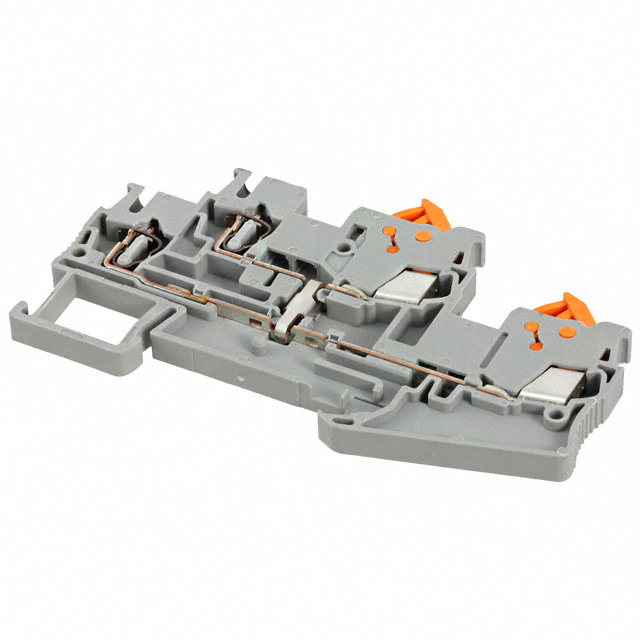

Phoenix Contact
| Part Number | 3206380 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN TERM BLK FEED THRU 12-28AWG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14357 pcs | Data sheet | 1.3206380.pdf2.3206380.pdf |
| Wire Gauge or Range - mm² | 0.25-1.5mm² | Wire Gauge or Range - AWG | 12-28 AWG |
| Voltage - UL | 600V | Voltage - IEC | 500V |
| Type | Feed Through | Termination Style | IDC, Push In, Spring |
| Terminal - Width | 5.2mm | Stripping Length | - |
| Series | CLIPLINE QTTCBS | Other Names | 277-9618 3206380-ND QTTCBS 1,5-PV QTTCBS1,5-PV |
| Number of Positions | 4 | Number of Levels | 2; Connected |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Fuse Type | - |
| Features | - | Disconnect Type | - |
| Detailed Description | Terminal Block Connector 4 Position Feed Through Gray 12-28 AWG | Current - UL | 10A |
| Current - IEC | 17.5A | Color | Gray |
