Phoenix Contact
| Part Number | 3061758 | Manufacturer | Phoenix Contact |
|---|---|---|---|

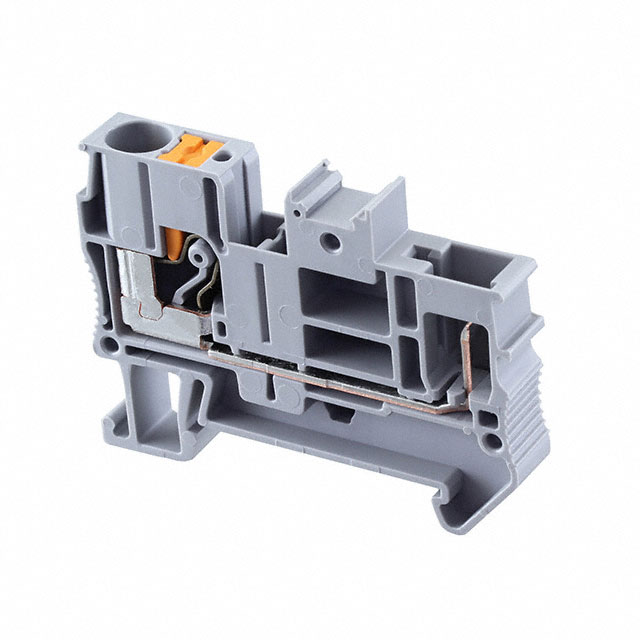

| Description | TERM BLK PLUG 2POS 8.2MM GRAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30871 pcs | Data sheet | 1.3061758.pdf2.3061758.pdf |
| Wire Gauge or Range - mm² | 0.5-10mm² | Wire Gauge or Range - AWG | 8-20 AWG |
| Voltage - UL | 600V | Voltage - IEC | 1kV |
| Type | Plug Connection | Termination Style | Plug Receptacles, Push In, Spring |
| Terminal - Width | 8.2mm | Stripping Length | 12mm |
| Series | CLIPLINE PT | Other Names | 277-15216 3061758-ND PT 6/1P |
| Operating Temperature | - | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | DIN Rail |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 2 Weeks |
| Length | 2.272" (57.70mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Color | Gray | Height (Max) | 2.008" (51.00mm) |
| Features | - | Detailed Description | 2 Position Terminal Block Gray Plug Connection 8.2mm |
| Current - UL | 40A | Current - IEC | 41A |
