Phoenix Contact

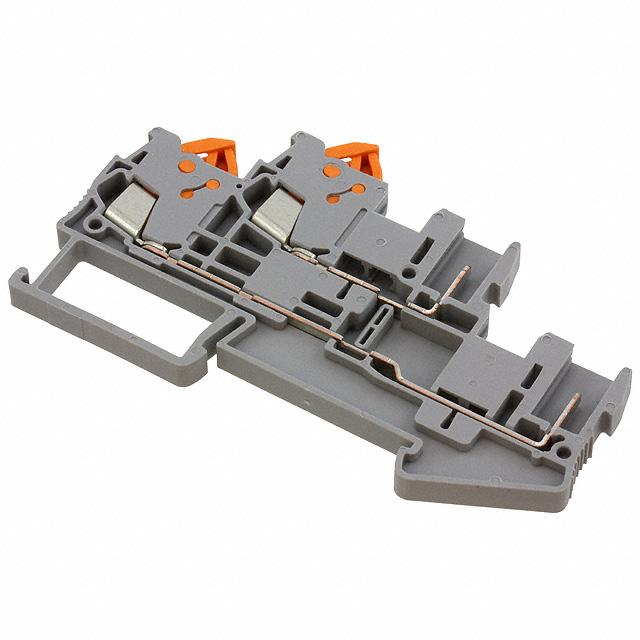

| Part Number | 3050196 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLK PLUG 4POS 5.2MM GRAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26554 pcs | Data sheet | 1.3050196.pdf2.3050196.pdf |
| Wire Gauge or Range - mm² | 0.25-1.5mm² | Wire Gauge or Range - AWG | 16-24 AWG |
| Voltage - UL | 600V | Voltage - IEC | 500V |
| Type | Plug Connection | Termination Style | Plug Receptacles, IDC |
| Terminal - Width | 5.2mm | Stripping Length | - |
| Series | CLIPLINE QTTCB | Other Names | 277-4078 3050196-ND QTTCB 1,5/ 2P QTTCB1,5/2P |
| Operating Temperature | - | Number of Positions | 4 |
| Number of Levels | 2 | Mounting Type | DIN Rail |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 4 Weeks |
| Length | 3.457" (87.80mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Color | Gray | Height (Max) | 2.260" (57.40mm) |
| Features | - | Detailed Description | 4 Position Terminal Block Gray Plug Connection 5.2mm |
| Current - UL | 10A | Current - IEC | 17.5A |
