Phoenix Contact
| Part Number | 3045402 | Manufacturer | Phoenix Contact |
|---|---|---|---|

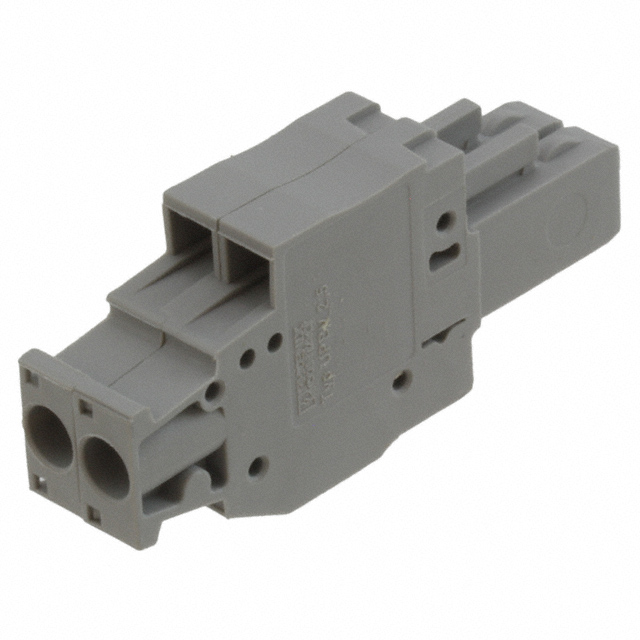

| Description | TERM BLOCK PLUG 2POS 90DEG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36001 pcs | Data sheet | 3045402.pdf |
| Wire Strip Length | 9mm | Wire Gauge or Range - mm² | 0.14-4mm² |
| Wire Gauge or Range - AWG | 12-26 AWG | Voltage - UL | 600V |
| Voltage - IEC | 500V | Type | Plug, Female Sockets |
| Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) | Termination Style | Screw |
| Series | CLIPLINE COMBI UPBV | Screw Size | M3 |
| Positions Per Level | 2 | Plug Wire Entry | 90° |
| Pitch | - | Packaging | Bulk |
| Other Names | 277-3764 3045402-ND UPBV 2,5/ 2 UPBV2,5/2 |
Operating Temperature | - |
| Number of Positions | 2 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 1.850" (47.00mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | - |
| Detailed Description | 2 Position Terminal Block Plug, Female Sockets 90° Free Hanging (In-Line) | Current - UL | 20A |
| Current - IEC | 24A | Contact Tail Length | - |
| Contact Mating Finish | - | Contact Material | - |
| Color | Gray |
