Phoenix Contact

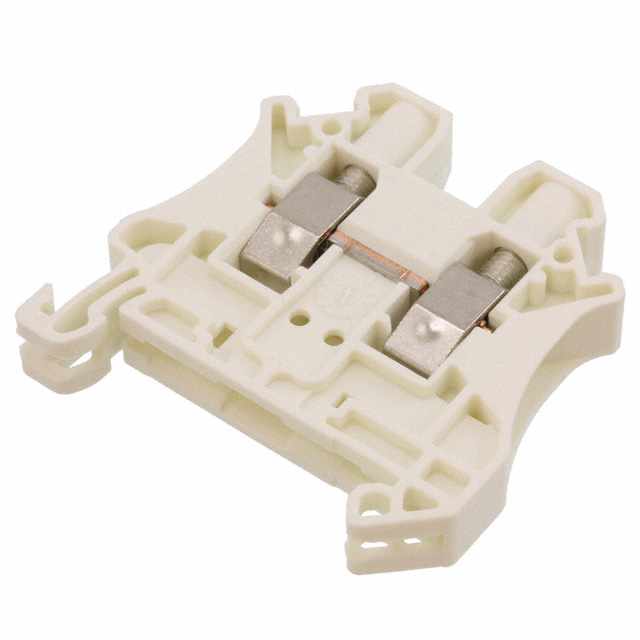

| Part Number | 3045198 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN TERM BLK FEED THRU 8-24 AWG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49090 pcs | Data sheet | 3045198.pdf |
| Wire Gauge or Range - mm² | 0.2-10mm² | Wire Gauge or Range - AWG | 8-24 AWG |
| Voltage - UL | 600V | Voltage - IEC | 1000V |
| Type | Feed Through | Termination Style | Screw |
| Terminal - Width | 8.2mm | Stripping Length | 10mm |
| Series | CLIPLINE UT | Other Names | 277-3576 3045198-ND UT 6 WH UT6WH |
| Number of Positions | 2 | Number of Levels | 1 |
| Material Flammability Rating | UL94 V-0 | Material - Insulation | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Fuse Type | - | Features | - |
| Disconnect Type | - | Detailed Description | Terminal Block Connector 2 Position Feed Through White 8-24 AWG |
| Current - UL | 50A | Current - IEC | 41A |
| Color | White |
