Phoenix Contact
| Part Number | 3042612 | Manufacturer | Phoenix Contact |
|---|---|---|---|

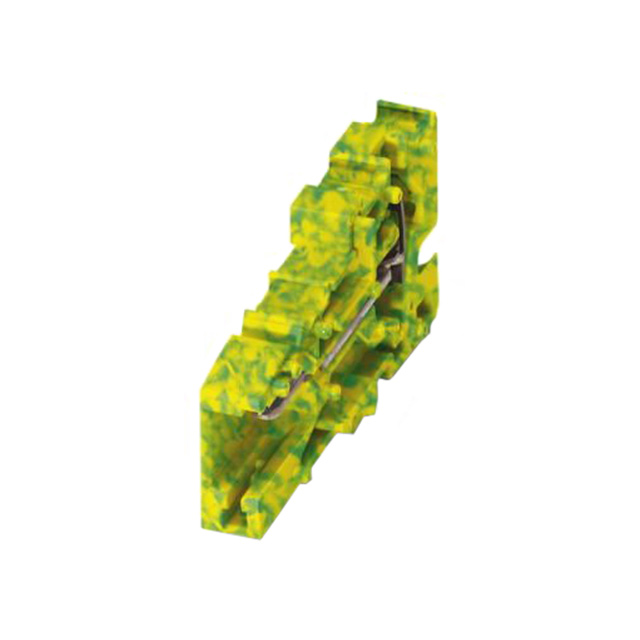

| Description | TERM BLOCK RCPT 1POS STR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71102 pcs | Data sheet | 1.3042612.pdf2.3042612.pdf |
| Wire Strip Length | 10mm | Wire Gauge or Range - mm² | 0.08-6mm² |
| Wire Gauge or Range - AWG | 10-28 AWG | Voltage - UL | 600V |
| Voltage - IEC | 800V | Type | Receptacle, Male Pins |
| Torque - Screw | - | Termination Style | Screwless - Spring Cage, Tension Clamp |
| Series | CLIPLINE COMBI SC | Screw Size | - |
| Positions Per Level | 1 | Plug Wire Entry | 180° |
| Pitch | - | Packaging | Bulk |
| Other Names | 277-15113 3042612-ND SC 4/ 1-L GNYE |
Operating Temperature | - |
| Number of Positions | 1 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.878" (22.30mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | Coupling, Interlocking (Side) | Detailed Description | 1 Position Terminal Block Receptacle, Male Pins 180° Free Hanging (In-Line) |
| Current - UL | 30A | Current - IEC | 32A |
| Contact Tail Length | - | Contact Mating Finish | - |
| Contact Material | - | Color | Green, Yellow |
