Phoenix Contact
| Part Number | 3041985 | Manufacturer | Phoenix Contact |
|---|---|---|---|

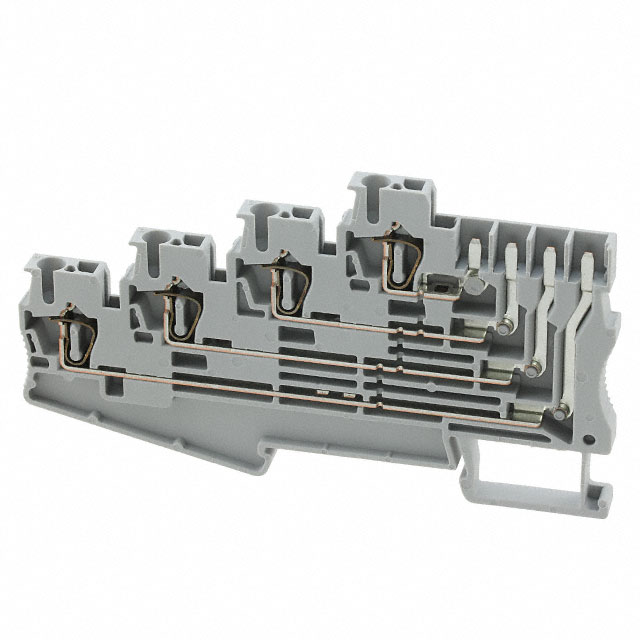

| Description | TERM BLK PLUG 8POS 5.2MM GRAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5776 pcs | Data sheet | 1.3041985.pdf2.3041985.pdf |
| Wire Gauge or Range - mm² | 0.08-4mm² | Wire Gauge or Range - AWG | 12-28 AWG |
| Voltage - UL | 300V | Voltage - IEC | 250V |
| Type | Plug Connection | Termination Style | Plug Receptacles, Push In, Spring |
| Terminal - Width | 5.2mm | Stripping Length | 10mm |
| Series | CLIPLINE ST | Other Names | 277-15107 3041985-ND ST 2.5-4L/1P ST2.5-4L/1P |
| Operating Temperature | - | Number of Positions | 8 |
| Number of Levels | 4 | Mounting Type | DIN Rail |
| Material Flammability Rating | UL94 V-0 | Material - Insulation | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time | 3 Weeks | Length | 3.976" (100.99mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Color | Gray |
| Height (Max) | 2.618" (66.50mm) | Features | - |
| Detailed Description | 8 Position Terminal Block Gray Plug Connection 5.2mm | Current - UL | 10A |
| Current - IEC | 10A |
