Phoenix Contact

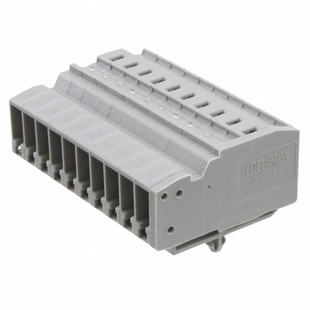

| Part Number | 3041587 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLK RCPT 10POS 5.2MM GRAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8966 pcs | Data sheet | 3041587.pdf |
| Wire Gauge or Range - mm² | 0.08-4mm² | Wire Gauge or Range - AWG | 12-26 AWG |
| Voltage - UL | 300V | Voltage - IEC | 500V |
| Type | Receptacle, Male Pins | Termination Style | Spring Cage |
| Terminal - Width | 5.2mm | Stripping Length | 10mm |
| Series | CLIPLINE COMBI SC | Other Names | 277-9570 3041587-ND SC 2.5-RZ/10 SC2.5-RZ/10 |
| Operating Temperature | - | Number of Positions | 10 |
| Number of Levels | 1 | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 3 Weeks |
| Length | 2.047" (52.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Color | Gray | Height (Max) | 0.858" (21.79mm) |
| Features | Coupling, Engagement Pin | Detailed Description | 10 Position Terminal Block Gray Receptacle, Male Pins 5.2mm |
| Current - UL | 20A | Current - IEC | 24A |
