Phoenix Contact

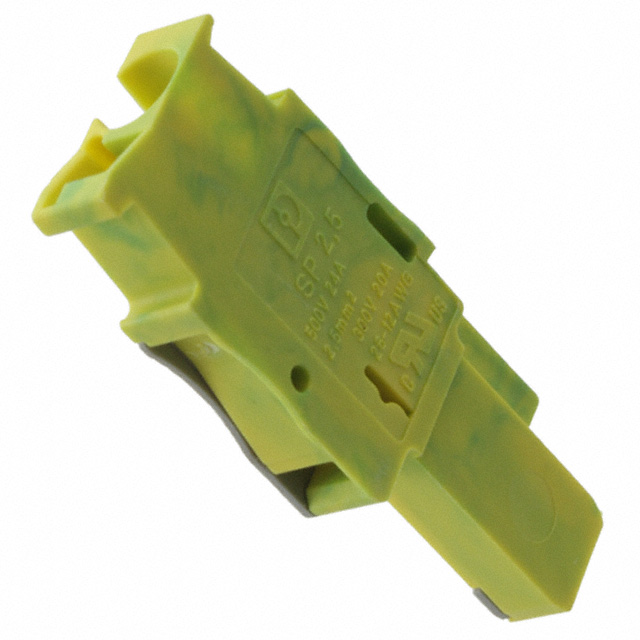

| Part Number | 3040708 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 1POS STR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 51312 pcs | Data sheet | 3040708.pdf |
| Wire Strip Length | 10mm | Wire Gauge or Range - mm² | 0.08-4mm² |
| Wire Gauge or Range - AWG | 12-28 AWG | Voltage - UL | 300V |
| Voltage - IEC | 500V | Type | Plug, Female Sockets |
| Torque - Screw | - | Termination Style | Screwless - Spring Cage, Tension Clamp |
| Series | CLIPLINE COMBI SP | Screw Size | - |
| Positions Per Level | 1 | Plug Wire Entry | 180° |
| Pitch | - | Packaging | Bulk |
| Other Names | 277-4081 3040708-ND SP 2.5/ 1 GNYE SP2.5/1GNYE |
Operating Temperature | - |
| Number of Positions | 1 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 1.535" (39.00mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | - |
| Detailed Description | 1 Position Terminal Block Plug, Female Sockets 180° Free Hanging (In-Line) | Current - UL | 20A |
| Current - IEC | 24A | Contact Tail Length | - |
| Contact Mating Finish | - | Contact Material | - |
| Color | Green, Yellow |
