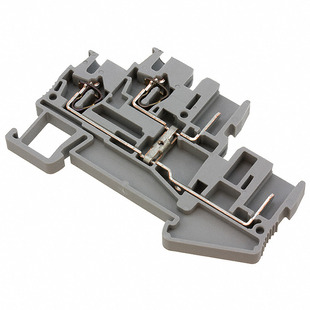

Phoenix Contact
| Part Number | 3040070 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLK PLUG 4POS 5.2MM GRAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8471 pcs | Data sheet | 1.3040070.pdf2.3040070.pdf |
| Wire Gauge or Range - mm² | 0.08-4mm² | Wire Gauge or Range - AWG | 12-28 AWG |
| Voltage - UL | 600V | Voltage - IEC | 500V |
| Type | Plug Connection | Termination Style | Plug Receptacles, Push In, Spring |
| Terminal - Width | 5.2mm | Stripping Length | 10mm |
| Series | CLIPLINE STTB | Other Names | 277-4065 3040070-ND STTB 2.5/ 2P-PV STTB2.5/2P-PV |
| Operating Temperature | - | Number of Positions | 4 |
| Number of Levels | 2; Connected | Mounting Type | DIN Rail |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 4 Weeks |
| Length | 2.913" (74.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Color | Gray | Height (Max) | 2.165" (55.00mm) |
| Features | - | Detailed Description | 4 Position Terminal Block Gray Plug Connection 5.2mm |
| Current - UL | 20A | Current - IEC | 22A |
