Phoenix Contact

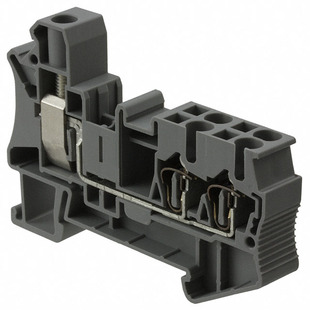

| Part Number | 3033139 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN TERM BLK FEED THRU 8-20 AWG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14905 pcs | Data sheet | 3033139.pdf |
| Wire Gauge or Range - mm² | 0.5-16mm² | Wire Gauge or Range - AWG | 8-20 AWG |
| Voltage - UL | 600V | Voltage - IEC | 800V |
| Type | Feed Through | Termination Style | Push In Spring; Screw |
| Terminal - Width | 10.3mm | Stripping Length | 10mm |
| Series | CLIPLINE STU | Other Names | 277-3855 3033139-ND STU 10/ 4X2,5 STU10/4X2,5 |
| Number of Positions | 5 | Number of Levels | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Fuse Type | - |
| Features | - | Disconnect Type | - |
| Detailed Description | Terminal Block Connector 5 Position Feed Through Gray 8-20 AWG | Current - UL | 50A |
| Current - IEC | 55A | Color | Gray |
