Phoenix Contact
| Part Number | 3031843 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN TERM BLK FEED THRU 12-28AWG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11652 pcs | Data sheet | 3031843.pdf |
| Wire Gauge or Range - mm² | 0.08-4mm² | Wire Gauge or Range - AWG | 12-28 AWG |
| Voltage - UL | 300V | Voltage - IEC | - |
| Type | Feed Through, Isolated | Termination Style | Push In, Spring |
| Terminal - Width | 5.2mm | Stripping Length | 10mm |
| Series | CLIPLINE STI | Other Names | 277-9541 3031843-ND STI 2.5-PE/L/N STI2.5-PE/L/N |
| Number of Positions | 5 | Number of Levels | 3; 1 Grounded |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Fuse Type | - |
| Features | - | Disconnect Type | - |

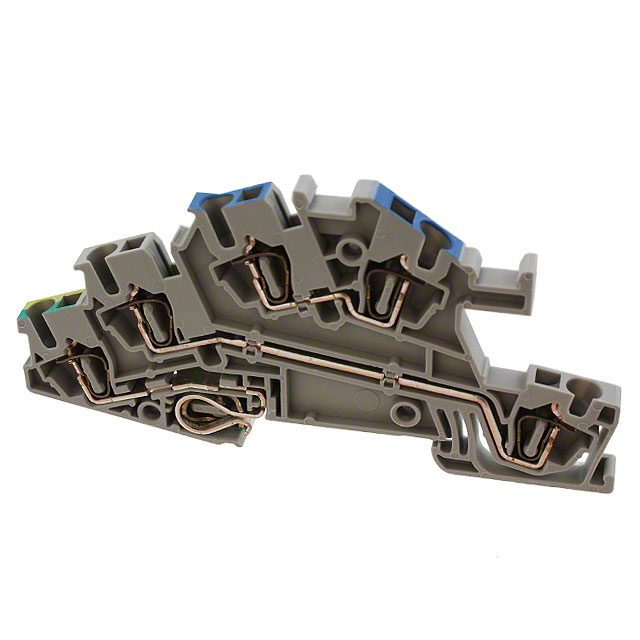

| Detailed Description | Terminal Block Connector 5 Position Feed Through, Isolated Gray 12-28 AWG | Current - UL | 20A |
| Current - IEC | 24A | Color | Gray |
