Phoenix Contact
| Part Number | 3003774 | Manufacturer | Phoenix Contact |
|---|---|---|---|

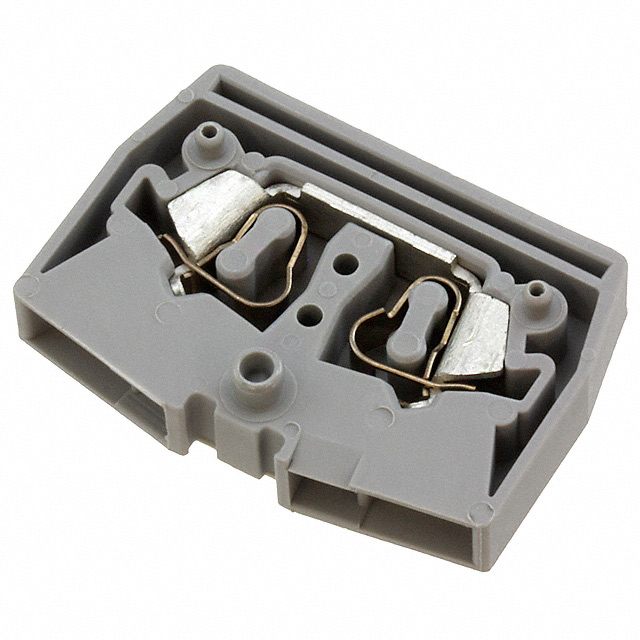

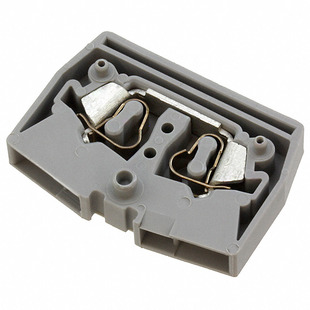

| Description | TERM BLK MIDDLE 2POS 5.2MM GRAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4829 pcs | Data sheet | 3003774.pdf |
| Wire Gauge or Range - mm² | 0.14-2.5mm² | Wire Gauge or Range - AWG | 14-26 AWG |
| Voltage - UL | 600V | Voltage - IEC | 800V |
| Type | Middle | Termination Style | Push In, Spring |
| Terminal - Width | 5.2mm | Stripping Length | 9mm |
| Series | CLIPLINE MZB | Other Names | 277-3658 3003774-ND MZB 1,5-M MZB1,5-M |
| Operating Temperature | - | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | Direct Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon | Length | 1.260" (32.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Color | Gray |
| Height (Max) | 0.866" (22.00mm) | Features | - |
| Detailed Description | 2 Position Terminal Block Gray Middle 5.2mm | Current - UL | 15A |
| Current - IEC | 17.5A |
