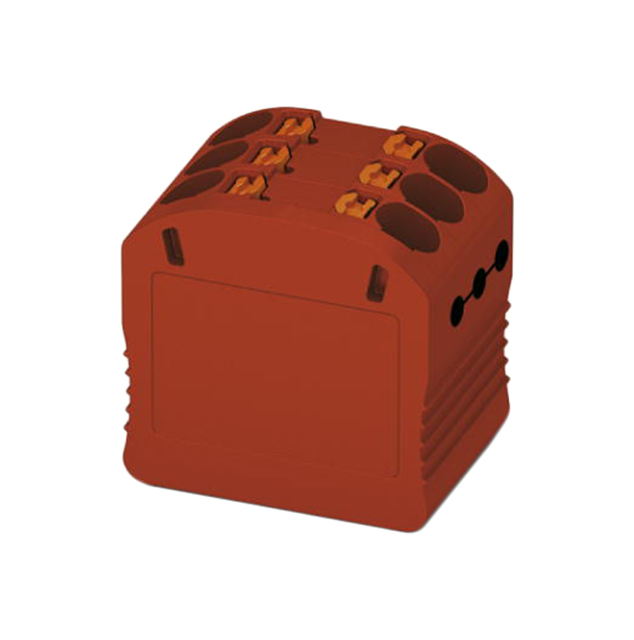

Phoenix Contact
| Part Number | 3002765 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | DISTRIBUTION BLOCK, INTERNALLY J | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86512 pcs | Data sheet | 3002765.pdf |
| Wire Gauge or Range - mm² | 0.14-1.5mm² | Wire Gauge or Range - AWG | 14-26 AWG |
| Voltage - UL | 300V | Voltage - IEC | 450V |
| Type | Middle | Termination Style | Push In, Spring |
| Terminal - Width | 12.6mm | Stripping Length | 10mm |
| Series | CLIPLINE PTFIX | Other Names | 277-15781 3002765-ND PTFIX 6X1 5 RD |
| Operating Temperature | -60°C ~ 130°C | Number of Positions | 6 |
| Number of Levels | 3 | Mounting Type | Direct Mount |
| Material Flammability Rating | UL94 V-0 | Material - Insulation | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time | 2 Weeks | Length | 0.827" (21.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Color | Red |
| Height (Max) | 0.693" (17.60mm) | Features | - |
| Detailed Description | 6 Position Terminal Block Red Middle 12.6mm | Current - UL | 15A |
| Current - IEC | 17.5A |
