Phoenix Contact
| Part Number | 1989078 | Manufacturer | Phoenix Contact |
|---|---|---|---|

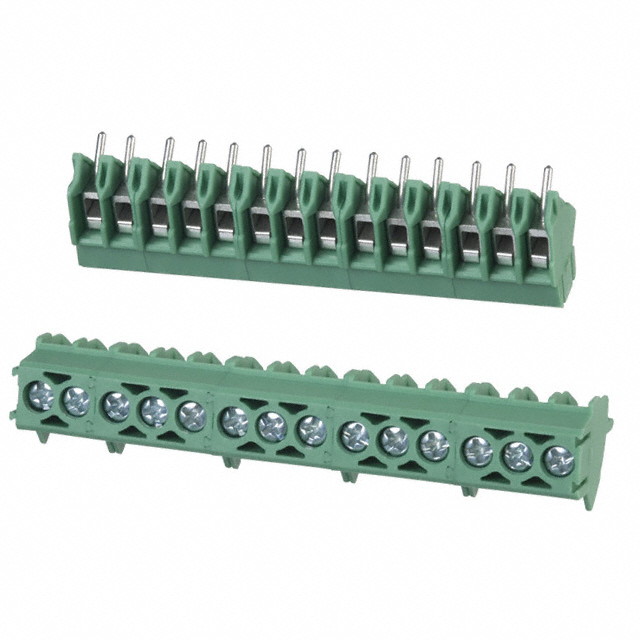

| Description | CONN TERM BLOCK 45DEG 14PS 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40361 pcs | Data sheet | 1989078.pdf |
| Wire Termination | Screw | Wire Gauge | 16-26 AWG |
| Voltage | 300V | Torque - Screw | 0.22-0.25 Nm (1.9-2.2 Lb-In) |
| Series | COMBICON PTA | Screw Thread | M2 |
| Screw Material - Plating | - | Positions Per Level | 14 |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 277-1791 PTA 1.5/14-3.5 PTA1.5/14-3.5 |
Operating Temperature | - |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Orientation | 45° (135°) Angle with Board |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA), Nylon | Features | Interlocking (Side) |
| Detailed Description | 14 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.138" (3.50mm) Through Hole | Current | 10A |
| Contact Material - Plating | - | Color | Green |
| Clamp Material - Plating | - |
