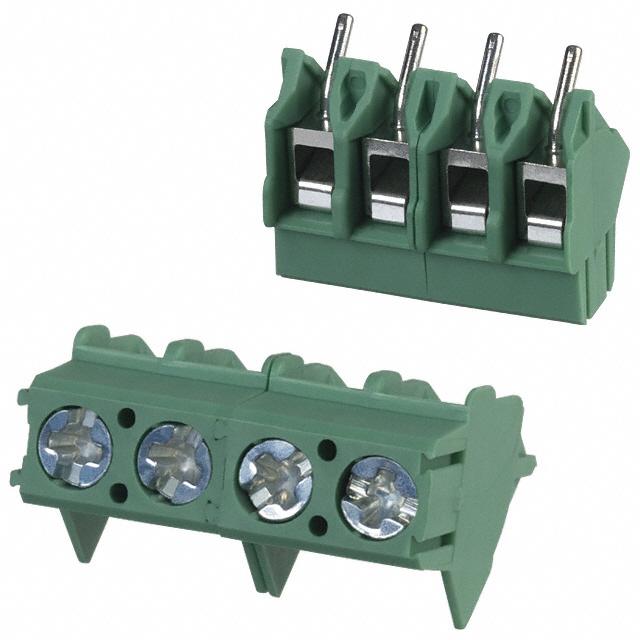

Phoenix Contact
| Part Number | 1988820 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN TERM BLOCK 45DEG 4POS 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 110977 pcs | Data sheet | 1988820.pdf |
| Wire Termination | Screw | Wire Gauge | 12-26 AWG |
| Voltage | 300V | Torque - Screw | 0.35-0.4 Nm (3.1-3.5 Lb-In) |
| Series | COMBICON PTA | Screw Thread | M2.6 |
| Screw Material - Plating | - | Positions Per Level | 4 |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | 277-1766 PTA 1.5/4-5.0 PTA1.5/4-5.0 |
Operating Temperature | - |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Orientation | 45° (135°) Angle with Board |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA), Nylon | Features | Interlocking (Side) |
| Detailed Description | 4 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole | Current | 15A |
| Contact Material - Plating | - | Color | Green |
| Clamp Material - Plating | - |
