Phoenix Contact

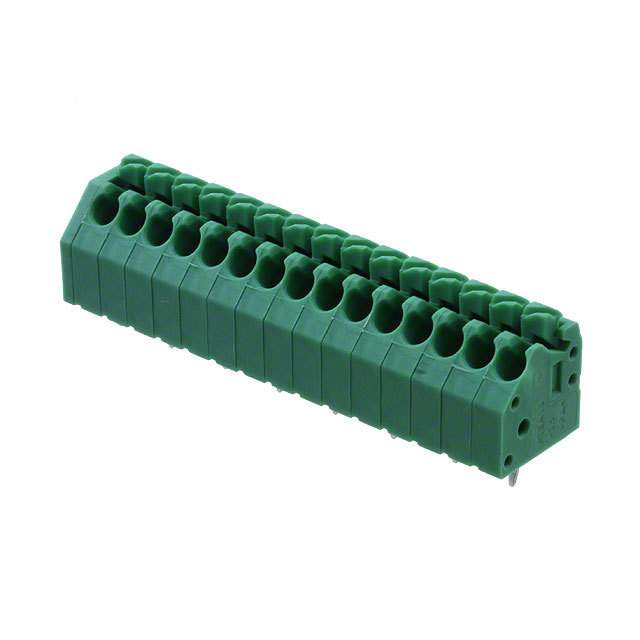

| Part Number | 1985328 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PCB 15POS 3.5MM GREEN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 44054 pcs | Data sheet | 1985328.pdf |
| Wire Termination | Screwless - Spring Cage, Tension Clamp | Wire Gauge | 16-24 AWG |
| Voltage | 300V | Torque - Screw | - |
| Series | COMBICON PTSA | Screw Thread | - |
| Screw Material - Plating | - | Positions Per Level | 15 |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 277-1635 PTSA 1.5/15-3.5-Z PTSA1.5/15-3.5-Z |
Operating Temperature | - |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Orientation | 45° (135°) Angle with Board |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA), Nylon | Features | - |
| Detailed Description | 15 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.138" (3.50mm) Through Hole | Current | 2A |
| Contact Material - Plating | - | Color | Green |
| Clamp Material - Plating | - |
