Phoenix Contact
| Part Number | 1975817 | Manufacturer | Phoenix Contact |
|---|---|---|---|

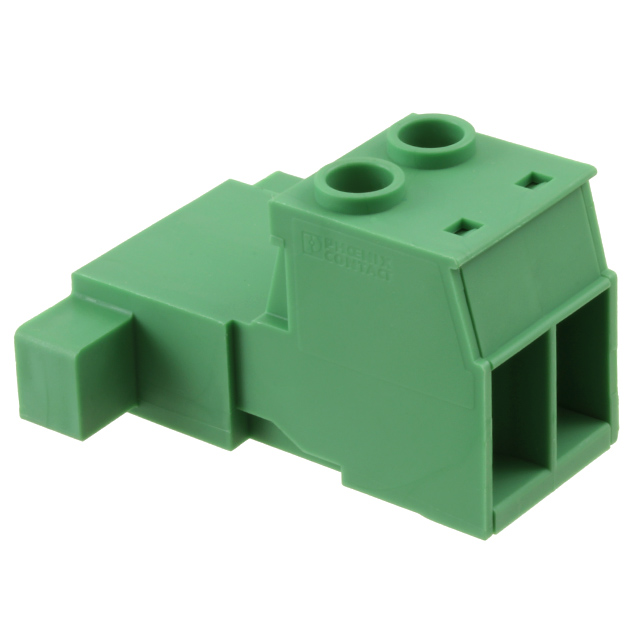

| Description | TERM BLOCK PLUG 2POS STR 10.16MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6976 pcs | Data sheet | 1.1975817.pdf2.1975817.pdf |
| Wire Strip Length | 12mm | Wire Gauge or Range - mm² | 0.75-16mm² |
| Wire Gauge or Range - AWG | 6-20 AWG | Voltage - UL | 600V |
| Voltage - IEC | 1kV | Type | Plug, Male Pins |
| Torque - Screw | 1.7-1.8 Nm (15-15.9 Lb-In) | Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Series | COMBICON IPC | Screw Size | M4 |
| Positions Per Level | 2 | Plug Wire Entry | 180° |
| Pitch | 0.400" (10.16mm) | Packaging | Bulk |
| Other Names | 1975817-ND 277-11518 IPC 16/ 2-STGF-10,16 IPC16/2-STGF-10,16 |
Operating Temperature | - |
| Number of Positions | 2 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 1.094" (27.80mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | Mating Flange |
| Detailed Description | 2 Position Terminal Block Plug, Male Pins 0.400" (10.16mm) 180° Free Hanging (In-Line) | Current - UL | 55A |
| Current - IEC | 76A | Contact Tail Length | - |
| Contact Mating Finish | Silver | Contact Material | - |
| Color | Green |
