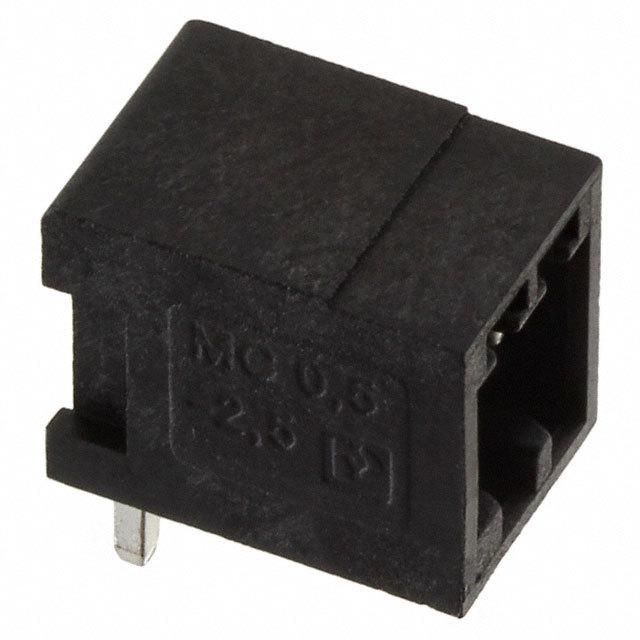

Phoenix Contact
| Part Number | 1963421 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 2POS 90DEG 2.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 121403 pcs | Data sheet | 1.1963421.pdf2.1963421.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 125V |
| Voltage - IEC | 160V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | MICRO-COMBICON MC | Screw Size | - |
| Positions Per Level | 2 | Plug Wire Entry | - |
| Pitch | 0.098" (2.50mm) | Packaging | Bulk |
| Other Names | 1963421-ND 277-14470 MC 0 5/ 2-G-2 5 THT |
Operating Temperature | - |
| Number of Positions | 2 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.319" (8.10mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | 90°, Right Angle | Features | - |
| Detailed Description | 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.098" (2.50mm) 90°, Right Angle Through Hole | Current - UL | 4A |
| Current - IEC | 4A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Black |
