Phoenix Contact

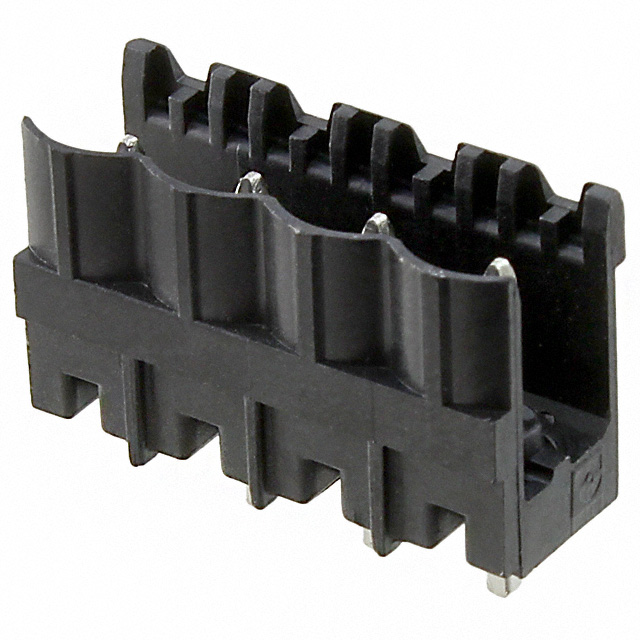

| Part Number | 1955400 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 4POS VERT 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68205 pcs | Data sheet | 1955400.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Voltage - IEC | 400V | Type | Header, Male Pins, Shrouded (2 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | COMBICON CCV | Screw Size | - |
| Positions Per Level | 4 | Plug Wire Entry | - |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 1955400-ND 277-9109 CCV 2,5/ 4-G-5,08 P26THR CCV2,5/4-G-5,08P26THR |
Operating Temperature | - |
| Number of Positions | 4 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.472" (12.00mm) |
| Ingress Protection | - | Housing Material | Liquid Crystal Polymer (LCP) |
| Header Orientation | Vertical | Features | - |
| Detailed Description | 4 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.200" (5.08mm) Vertical Through Hole | Current - UL | 10A |
| Current - IEC | 12A per position | Contact Tail Length | 0.102" (2.60mm) |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Black |
