Phoenix Contact
| Part Number | 1923432 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 12POS STR 2.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5621 pcs | Data sheet | 1.1923432.pdf2.1923432.pdf |
| Wire Strip Length | 8mm | Wire Gauge or Range - mm² | 0.14-0.5mm² |
| Wire Gauge or Range - AWG | 20-28 AWG | Voltage - UL | 125V |
| Voltage - IEC | 100V | Type | Plug, Female Sockets |
| Torque - Screw | - | Termination Style | Screwless - Leg Spring, Push-In Spring |
| Series | MICRO-COMBICON FK-MC | Screw Size | - |
| Positions Per Level | 12 | Plug Wire Entry | 180° |
| Pitch | 0.098" (2.50mm) | Packaging | Bulk |
| Other Names | 1923432-ND 277-14387 FK-MC 0.5/12-ST-2.5-AU FK-MC0.5/12-ST-2.5-AU |
Operating Temperature | - |
| Number of Positions | 12 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.463" (11.76mm) |
| Ingress Protection | - | Housing Material | - |
| Header Orientation | - | Features | - |

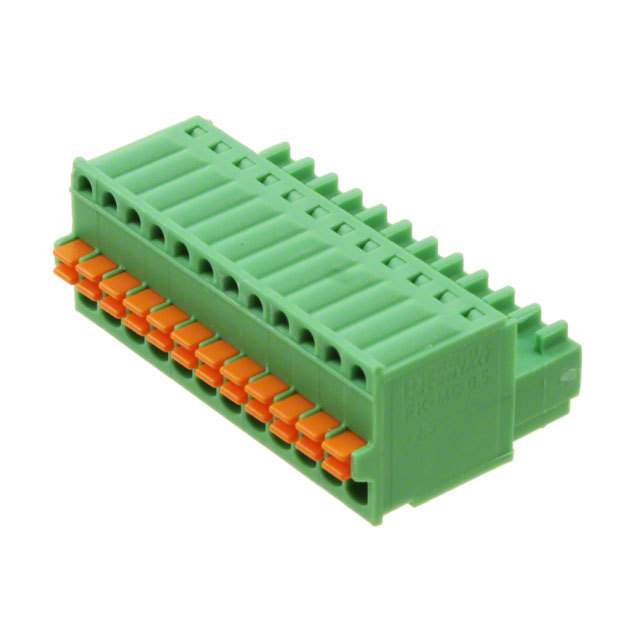

| Detailed Description | 12 Position Terminal Block Plug, Female Sockets 0.098" (2.50mm) 180° Free Hanging (In-Line) | Current - UL | 4A |
| Current - IEC | 4A | Contact Tail Length | - |
| Contact Mating Finish | Gold | Contact Material | - |
| Color | Green |
