Phoenix Contact

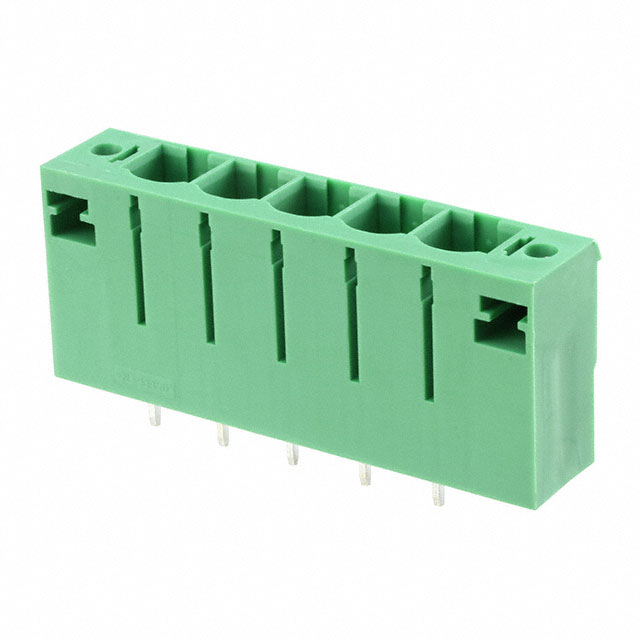

| Part Number | 1922598 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 5POS VERT 10.16MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6159 pcs | Data sheet | 1.1922598.pdf2.1922598.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 600V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | COMBICON PCV |
| Screw Size | - | Positions Per Level | 5 |
| Plug Wire Entry | - | Pitch | 0.400" (10.16mm) |
| Packaging | Bulk | Other Names | 1922598-ND 277-14385 PCV 6-16/ 5-GF-10.16 PCV6-16/5-GF-10.16 |
| Operating Temperature | - | Number of Positions | 5 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 1.114" (28.30mm) | Ingress Protection | - |
| Housing Material | - | Header Orientation | Vertical |
| Features | Mating and Mounting Flange | Detailed Description | 5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.400" (10.16mm) Vertical Through Hole |
| Current - UL | 5A | Current - IEC | - |
| Contact Tail Length | 0.157" (4.00mm) | Contact Mating Finish | Silver |
| Contact Material | - | Color | Green |
