Phoenix Contact
| Part Number | 1913963 | Manufacturer | Phoenix Contact |
|---|---|---|---|

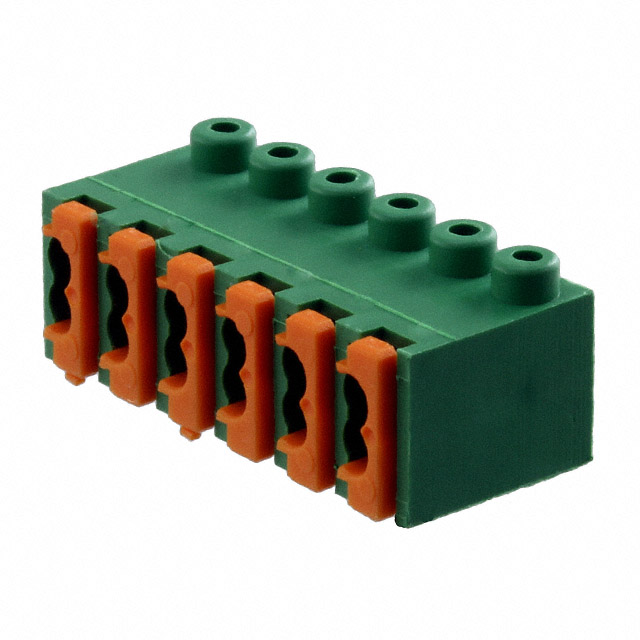

| Description | TERM BLOCK PLUG 6POS 90DEG 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36697 pcs | Data sheet | 1913963.pdf |
| Wire Strip Length | 6.5mm | Wire Gauge or Range - mm² | 0.12-0.5mm² |
| Wire Gauge or Range - AWG | 20-28 AWG | Voltage - UL | 300V |
| Voltage - IEC | 250V | Type | Plug for Unshrouded Header |
| Torque - Screw | - | Termination Style | Screwless - Spring Cage, Tension Clamp |
| Series | COMBICON FK-MPT | Screw Size | - |
| Positions Per Level | 6 | Plug Wire Entry | 90° |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 1913963-ND 277-9040 FK-MPT 0.5/ 6-ST-3.5 FK-MPT0.5/6-ST-3.5 |
Operating Temperature | - |
| Number of Positions | 6 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.335" (8.51mm) |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Header Orientation | - | Features | - |
| Detailed Description | 6 Position Terminal Block Plug for Unshrouded Header 0.138" (3.50mm) 90° Free Hanging (In-Line) | Current - UL | 4A |
| Current - IEC | 4A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
