Phoenix Contact
| Part Number | 1902631 | Manufacturer | Phoenix Contact |
|---|---|---|---|

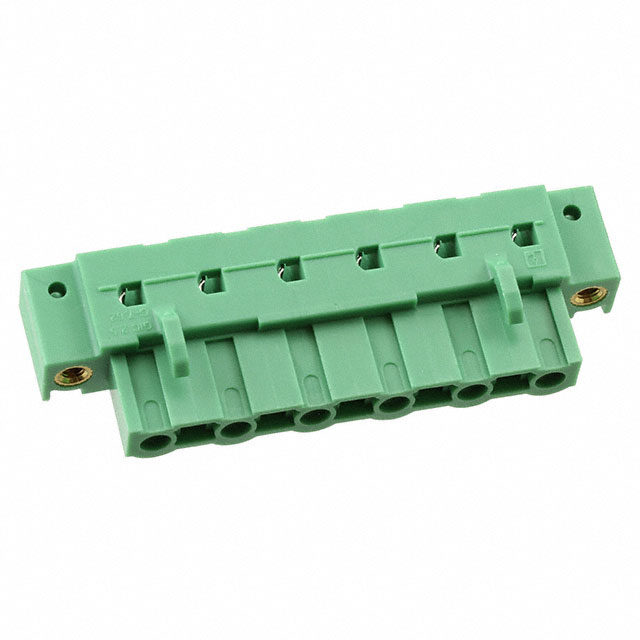

| Description | TERM BLOCK HDR 6POS 90DEG 7.62MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6616 pcs | Data sheet | 1.1902631.pdf2.1902631.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - IEC | 500V |
| Type | Header, Female Sockets | Torque - Screw | - |
| Termination Style | Solder | Series | COMBICON GIC |
| Screw Size | - | Positions Per Level | 6 |
| Plug Wire Entry | - | Pitch | 0.300" (7.62mm) |
| Packaging | Bulk | Other Names | 1902631-ND 277-14332 GIC 2.5/ 6-GF-7.62 AU GIC2.5/6-GF-7.62AU |
| Operating Temperature | - | Number of Positions | 6 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.402" (10.20mm) | Ingress Protection | - |
| Housing Material | - | Header Orientation | 90°, Right Angle |
| Features | Mating and Mounting Flange, Retention Latches | Detailed Description | 6 Position Terminal Block Header, Female Sockets 0.300" (7.62mm) 90°, Right Angle Through Hole |
| Current - IEC | 12A | Contact Tail Length | - |
| Contact Mating Finish | Gold | Contact Material | - |
| Color | Green |
