Phoenix Contact

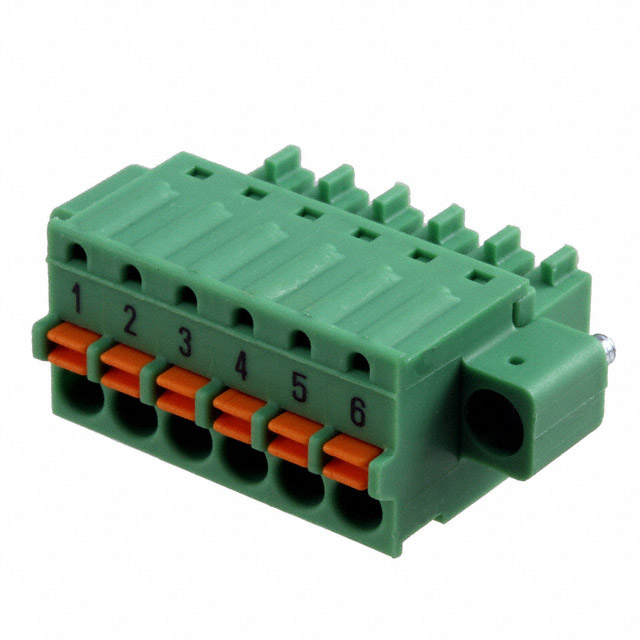

| Part Number | 1892880 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 6POS STR 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9711 pcs | Data sheet | 1892880.pdf |
| Wire Strip Length | 9mm | Wire Gauge or Range - mm² | 0.14-1.5mm² |
| Wire Gauge or Range - AWG | 16-28 AWG | Voltage - IEC | 160V |
| Type | Plug, Female Sockets | Torque - Screw | - |
| Termination Style | Screwless - Leg Spring, Push-In Spring | Series | COMBICON FK-MCP |
| Screw Size | - | Positions Per Level | 6 |
| Plug Wire Entry | 180° | Pitch | 0.150" (3.81mm) |
| Packaging | Bulk | Other Names | 1892880-ND 277-8989 FK-MCP 1,5/ 6-STF-3,81 BD:1-6 FK-MCP1,5/6-STF-3,81BD:1-6 |
| Operating Temperature | - | Number of Positions | 6 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.488" (12.40mm) | Ingress Protection | - |
| Housing Material | - | Header Orientation | - |
| Features | Mating Flange, Positions Stamped | Detailed Description | 6 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 180° Free Hanging (In-Line) |
| Current - IEC | 8A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
