Phoenix Contact
| Part Number | 1880753 | Manufacturer | Phoenix Contact |
|---|---|---|---|

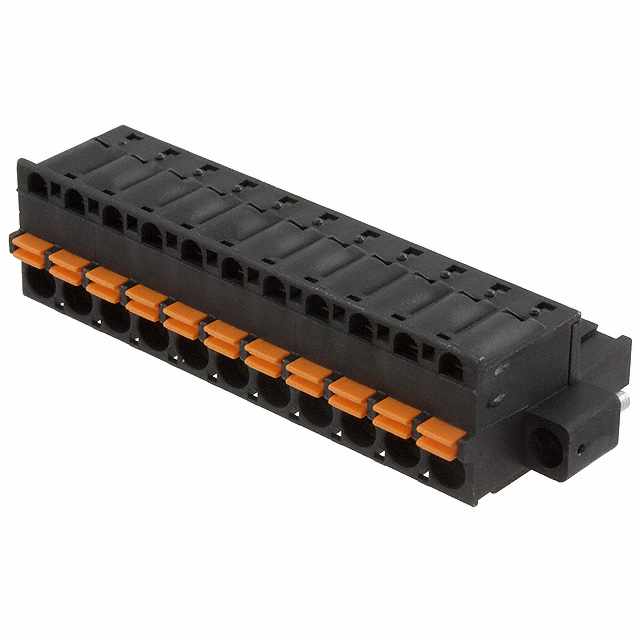

| Description | TERM BLOCK PLUG 11POS STR 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6218 pcs | Data sheet | 1880753.pdf |
| Wire Strip Length | 10mm | Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Wire Gauge or Range - AWG | 12-26 AWG | Voltage - IEC | 630V |
| Type | Plug, Female Sockets | Torque - Screw | - |
| Termination Style | Screwless - Leg Spring, Push-In Spring | Series | COMBICON FKC |
| Screw Size | - | Positions Per Level | 11 |
| Plug Wire Entry | 180° | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | 1880753-ND 277-8975 FKC 2,5/11-STF-5,08 BK FKC2,5/11-STF-5,08BK |
| Operating Temperature | - | Number of Positions | 11 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.591" (15.00mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | Mating Flange, Retention Latches (Non-Wire Side) | Detailed Description | 11 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line) |
| Current - IEC | 12A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Black |
