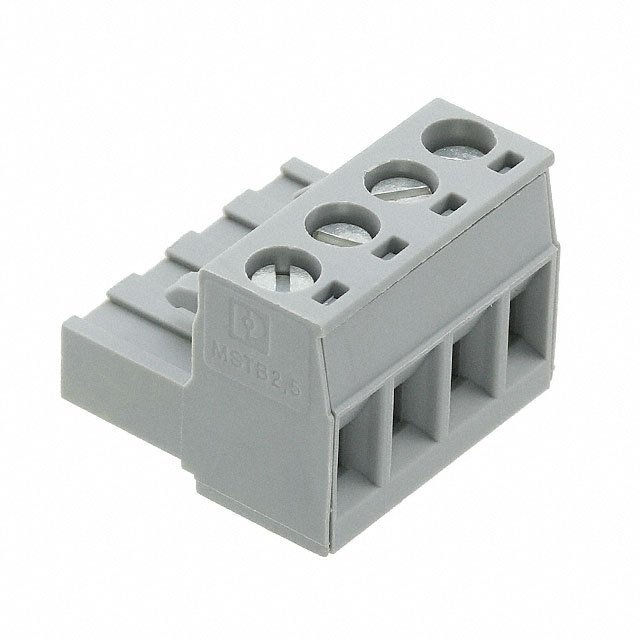

Phoenix Contact
| Part Number | 1860045 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 4POS STR 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27200 pcs | Data sheet | 1860045.pdf |
| Wire Strip Length | 7mm | Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Wire Gauge or Range - AWG | 12-30 AWG | Voltage - IEC | 250V |
| Type | Plug, Female Sockets | Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) | Series | COMBICON MSTB |
| Screw Size | M3 | Positions Per Level | 4 |
| Plug Wire Entry | 180° | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | MSTB 2 5/ 4-ST GY |
| Operating Temperature | - | Number of Positions | 4 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.591" (15.00mm) | Ingress Protection | - |
| Housing Material | - | Header Orientation | - |
| Features | Retention Latches (Non-Wire Side) | Detailed Description | 4 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line) |
| Current - IEC | 12A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Gray |
