Phoenix Contact

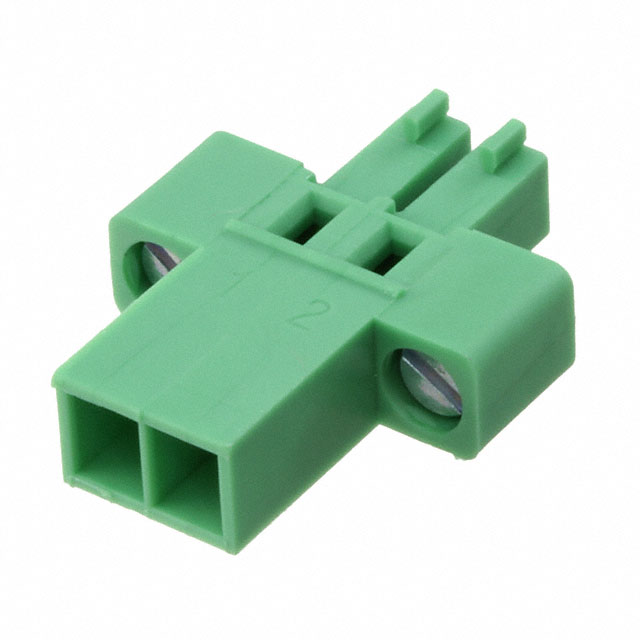

| Part Number | 1852367 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 2POS STR 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69845 pcs | Data sheet | 1852367.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | 0.2-1mm² |
| Wire Gauge or Range - AWG | 22-24 AWG | Voltage - UL | 300V |
| Voltage - IEC | 320V | Type | Plug Housing for Female Sockets |
| Torque - Screw | - | Termination Style | - |
| Series | COMBICON MCC | Screw Size | - |
| Positions Per Level | 2 | Plug Wire Entry | 180° |
| Pitch | 0.150" (3.81mm) | Packaging | Bulk |
| Other Names | 1852367-ND 277-14226 MCC1/2-STZF-3.81 MCC12STZF381 |
Operating Temperature | - |
| Number of Positions | 2 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.343" (8.71mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | Mating Flange |
| Detailed Description | 2 Position Terminal Block Plug Housing for Female Sockets 0.150" (3.81mm) 180° Free Hanging (In-Line) | Current - UL | 5A |
| Current - IEC | 8A | Contact Tail Length | - |
| Contact Mating Finish | - | Contact Material | - |
| Color | Green |
