Phoenix Contact

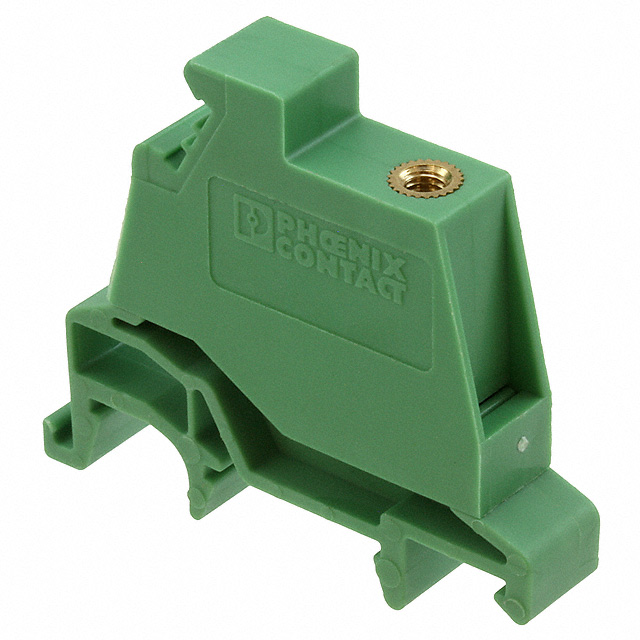

| Part Number | 1850000 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLK PLUG 1POS 7.62MM GREEN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14129 pcs | Data sheet | 1850000.pdf |
| Wire Gauge or Range - mm² | 0.2-4mm² | Wire Gauge or Range - AWG | 12-24 AWG |
| Voltage - IEC | 630V | Type | Plug Connection |
| Termination Style | Plug Receptacles, Screw | Terminal - Width | 7.6mm |
| Stripping Length | 10mm | Series | COMBICON PCVK |
| Other Names | 1850000-ND 277-6086 PCVK 4-7,62-F PCVK4-7,62-F |
Operating Temperature | - |
| Number of Positions | 1 | Number of Levels | 1 |
| Mounting Type | DIN Rail | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Material - Insulation | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time | 4 Weeks | Length | 1.622" (41.20mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Color | Green |
| Height (Max) | - | Features | - |
| Detailed Description | 1 Position Terminal Block Green Plug Connection 7.6mm | Current - IEC | 20A |
