Phoenix Contact
| Part Number | 1843745 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 16POS VERT 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16496 pcs | Data sheet | 1843745.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Voltage - IEC | 250V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | COMBICON MCV | Screw Size | - |
| Positions Per Level | 16 | Plug Wire Entry | - |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 1843745-ND 277-6210 MCV 1,5/16-G-3,5 MCV1,5/16-G-3,5 |
Operating Temperature | - |
| Number of Positions | 16 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.362" (9.20mm) |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Header Orientation | Vertical | Features | - |

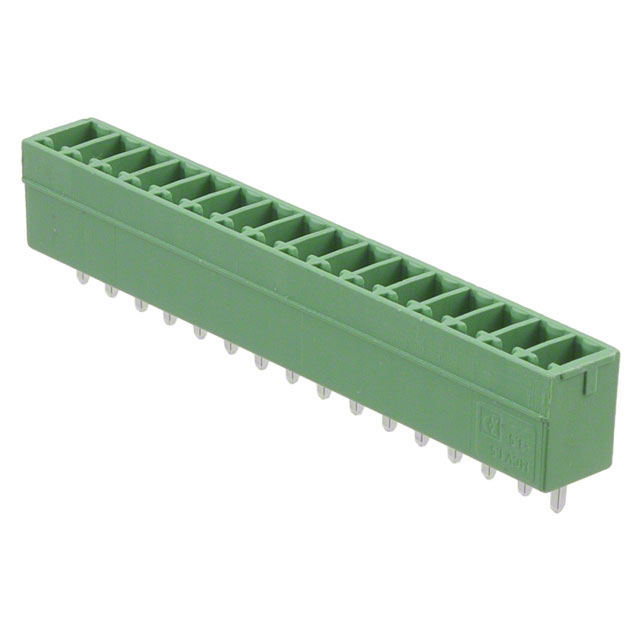

| Detailed Description | 16 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole | Current - UL | 8A |
| Current - IEC | 8A | Contact Tail Length | 0.134" (3.40mm) |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
