Phoenix Contact

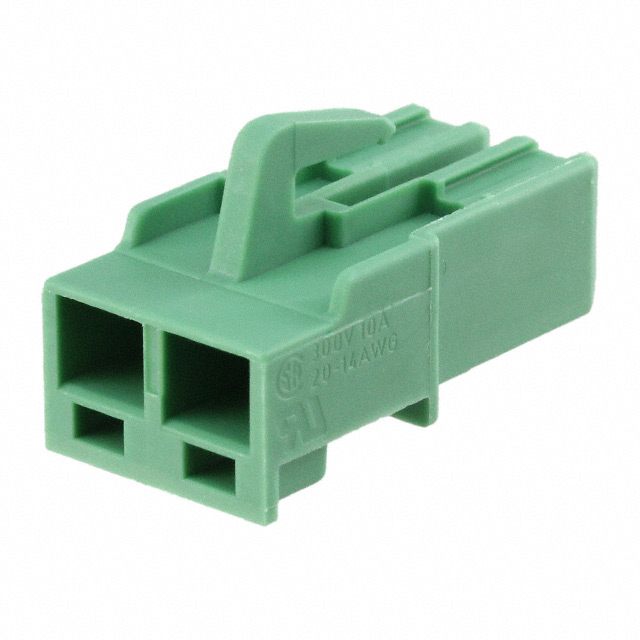

| Part Number | 1840191 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 2POS STR 7.62MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74577 pcs | Data sheet | 1840191.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | 0.5-2.5mm² |
| Wire Gauge or Range - AWG | 14-20 AWG | Voltage - UL | 600V |
| Voltage - IEC | 1kV | Type | Plug Housing for Female Sockets |
| Torque - Screw | - | Termination Style | - |
| Series | COMBICON PCC | Screw Size | - |
| Positions Per Level | 2 | Plug Wire Entry | 180° |
| Pitch | 0.300" (7.62mm) | Packaging | Bulk |
| Other Names | 1840191-ND 277-14175 PCC 4/ 2-ST-7,62 PCC4/2-ST-7,62 |
Operating Temperature | - |
| Number of Positions | 2 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.677" (17.20mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | Retention Latches |
| Detailed Description | 2 Position Terminal Block Plug Housing for Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line) | Current - UL | 10A |
| Current - IEC | 20A | Contact Tail Length | - |
| Contact Mating Finish | - | Contact Material | - |
| Color | Green |
