Phoenix Contact

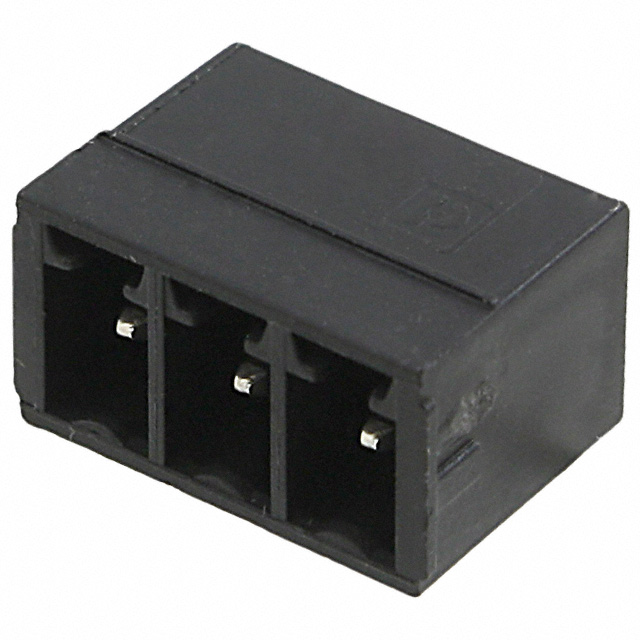

| Part Number | 1839623 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 3POS 90DEG 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79750 pcs | Data sheet | |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Voltage - IEC | 250V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | COMBICON MC | Screw Size | - |
| Positions Per Level | 3 | Plug Wire Entry | - |
| Pitch | 0.150" (3.81mm) | Packaging | Bulk |
| Other Names | 1839623-ND 277-8870 MC 1,5/ 3-G-3,81 BK MC1,5/3-G-3,81BK |
Operating Temperature | - |
| Number of Positions | 3 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.285" (7.25mm) |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Header Orientation | 90°, Right Angle | Features | - |
| Detailed Description | 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole | Current - UL | 8A |
| Current - IEC | 8A | Contact Tail Length | 0.134" (3.40mm) |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Black |
