Phoenix Contact

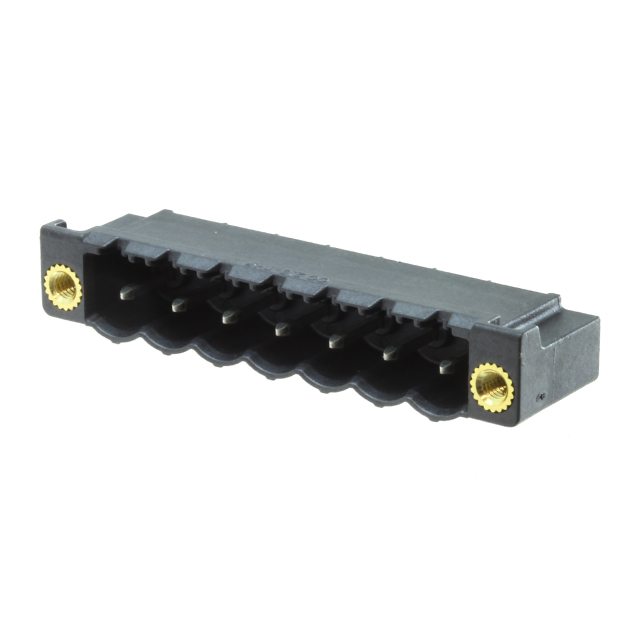

| Part Number | 1837417 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 7POS BLK | Lead Free Status / RoHS Status | |
| Quantity Available | 10862 pcs | Data sheet | 1837417.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | COMBICON CCV |
| Screw Size | - | Positions Per Level | 7 |
| Plug Wire Entry | - | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 1837417-ND 277-16355 CCV 2 5/ 7-GF-LR P20 THR |
| Operating Temperature | -40°C | Number of Positions | 7 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 4 Weeks |
| Insulation Height | 0.472" (12.00mm) | Ingress Protection | - |
| Housing Material | Liquid Crystal Polymer (LCP) | Header Orientation | Vertical |
| Features | Mating Flange | Detailed Description | 7 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Through Hole |
| Current - UL | 16A | Current - IEC | 12A |
| Contact Tail Length | 0.079" (2.00mm) | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
