Phoenix Contact
| Part Number | 1836405 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CCA 2,5/ 8-G P20 THR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40208 pcs | Data sheet | 1836405.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | COMBICON CCA |
| Screw Size | - | Positions Per Level | 8 |
| Plug Wire Entry | - | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 1836405-ND 277-16338 |
| Operating Temperature | - | Number of Positions | 8 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.337" (8.56mm) | Ingress Protection | - |
| Housing Material | Liquid Crystal Polymer (LCP) | Header Orientation | 90°, Right Angle |

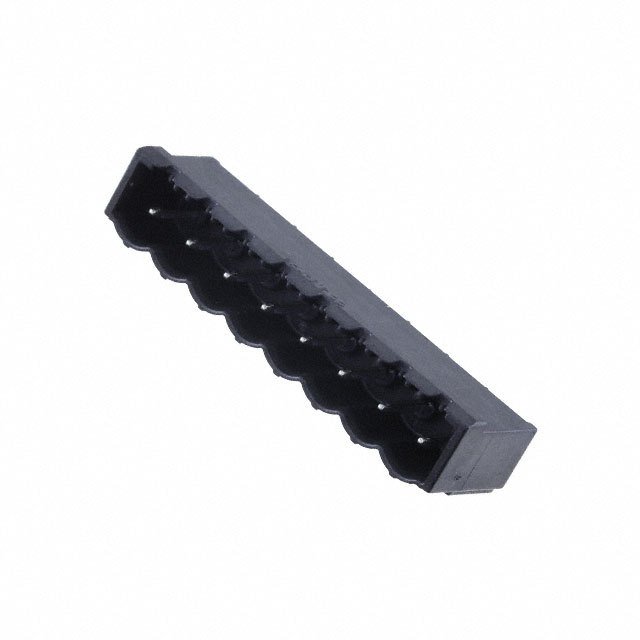

| Features | - | Detailed Description | 8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole |
| Current - UL | 16A | Current - IEC | 12A |
| Contact Tail Length | 0.079" (2.00mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | Black |
