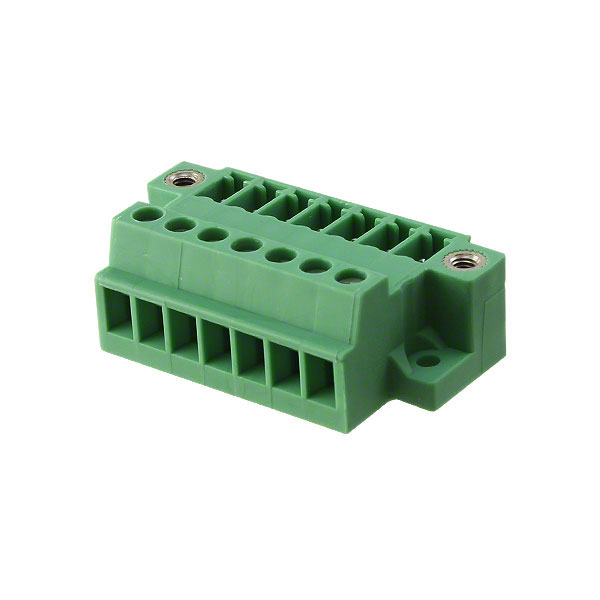

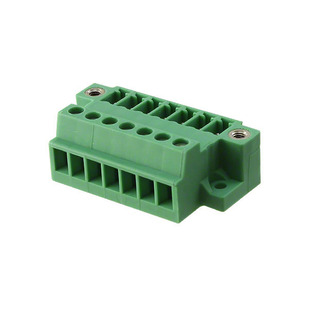

Phoenix Contact
| Part Number | 1833072 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK RCPT 7POS 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6604 pcs | Data sheet | 1833072.pdf |
| Wire Strip Length | 7mm | Wire Gauge or Range - mm² | 0.14-1.5mm² |
| Wire Gauge or Range - AWG | 14-30 AWG | Voltage - UL | 300V |
| Voltage - IEC | 320V | Type | Receptacle, Male Pins |
| Torque - Screw | 0.22-0.25 Nm (1.9-2.2 Lb-In) | Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Series | COMBICON MCVU | Screw Size | M2 |
| Positions Per Level | 7 | Plug Wire Entry | - |
| Pitch | 0.150" (3.81mm) | Packaging | Bulk |
| Other Names | 1833072-ND 277-6668 MCVU 1,5/ 7-GFD-3,81 MCVU1,5/7-GFD-3,81 |
Operating Temperature | - |
| Number of Positions | 7 | Number of Levels | 1 |
| Mounting Type | Board Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.492" (12.50mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | Mating and Mounting Flange |
| Detailed Description | 7 Position Terminal Block Receptacle, Male Pins 0.150" (3.81mm) Board Mount | Current - UL | 8A |
| Current - IEC | 8A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
