Phoenix Contact
| Part Number | 1830279 | Manufacturer | Phoenix Contact |
|---|---|---|---|

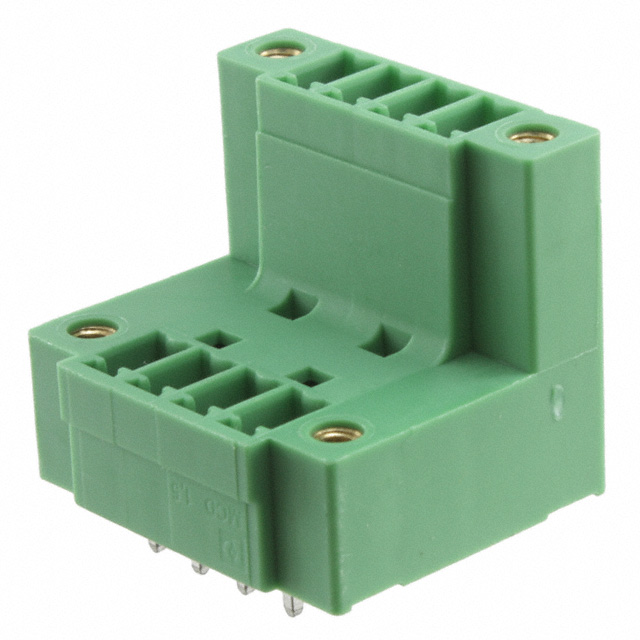

| Description | TERM BLOCK HDR 8POS VERT 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12438 pcs | Data sheet | |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Voltage - IEC | 320V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | COMBICON MCDV | Screw Size | - |
| Positions Per Level | 4 | Plug Wire Entry | - |
| Pitch | 0.150" (3.81mm) | Packaging | Bulk |
| Other Names | 1830279-ND 277-8851 MCDV 1,5/ 4-GF-3,81 MCDV1,5/4-GF-3,81 |
Operating Temperature | - |
| Number of Positions | 8 | Number of Levels | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.862" (21.89mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | Vertical | Features | Mating Flange |
| Detailed Description | 8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole | Current - UL | 8A |
| Current - IEC | 8A | Contact Tail Length | 0.134" (3.40mm) |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
