Phoenix Contact

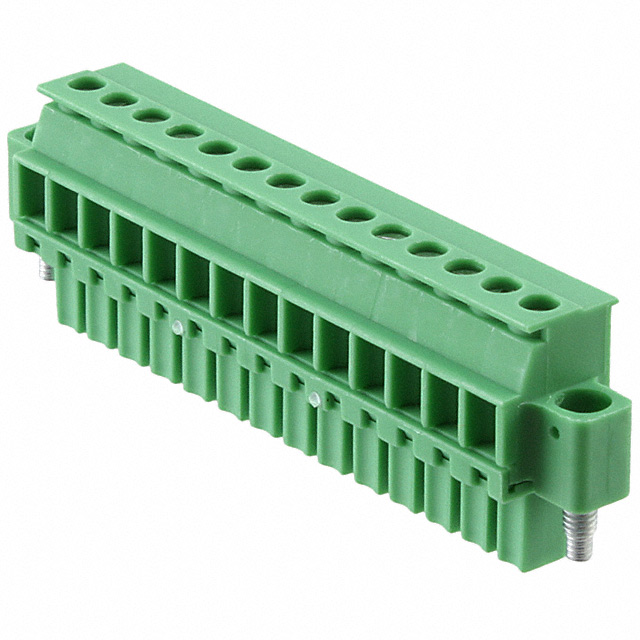

| Part Number | 1828618 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 14POS 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5945 pcs | Data sheet | |
| Wire Strip Length | 7mm | Wire Gauge or Range - mm² | 0.14-1.5mm² |
| Wire Gauge or Range - AWG | 14-30 AWG | Voltage - UL | 300V |
| Voltage - IEC | 320V | Type | Plug, Female Sockets |
| Torque - Screw | 0.22-0.25 Nm (1.9-2.2 Lb-In) | Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Series | COMBICON MCVW | Screw Size | M2 |
| Positions Per Level | 14 | Plug Wire Entry | 270° |
| Pitch | 0.150" (3.81mm) | Packaging | Bulk |
| Other Names | 1828618-ND 277-8842 MCVW 1,5/14-STF-3,81 MCVW1,5/14-STF-3,81 |
Operating Temperature | - |
| Number of Positions | 14 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.752" (19.10mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | Mating Flange |
| Detailed Description | 14 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 270° Free Hanging (In-Line) | Current - UL | 8A |
| Current - IEC | 8A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
