Phoenix Contact
| Part Number | 1823599 | Manufacturer | Phoenix Contact |
|---|---|---|---|

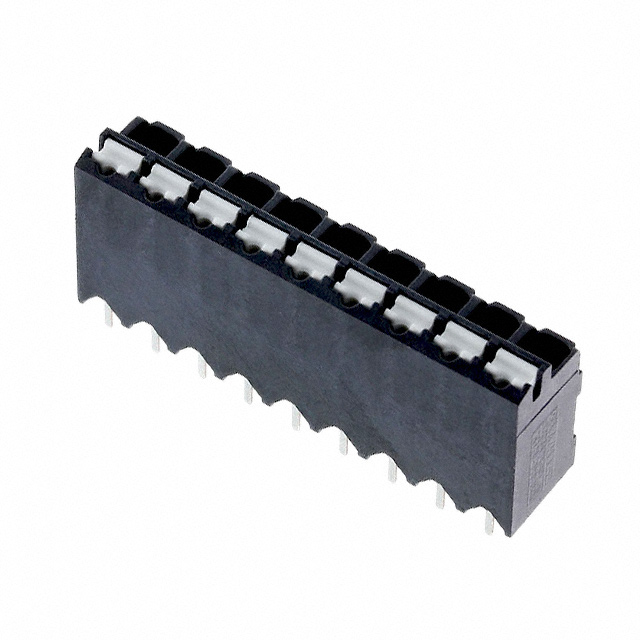

| Description | TERM BLOCK 9POS TOP 5.08MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17170 pcs | Data sheet | 1823599.pdf |
| Wire Termination | Screwless - Leg Spring, Push-In Spring | Wire Gauge | 16-24 AWG |
| Voltage | 300V | Torque - Screw | - |
| Series | COMBICON SPT-THR | Screw Thread | - |
| Screw Material - Plating | - | Positions Per Level | 9 |
| Pitch | 0.200" (5.08mm) | Packaging | Tape & Reel (TR) |
| Other Names | 1823599-ND 277-11654 277-11654-2 277-11654-ND SPT-THR 1 5/ 9-V-5 08 P20 R88 |
Operating Temperature | - |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Orientation | Vertical with Board |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Features | - |
| Detailed Description | 9 Position Wire to Board Terminal Block Vertical with Board 0.200" (5.08mm) Through Hole | Current | 10A |
| Contact Material - Plating | Tin Plated | Color | Black |
| Clamp Material - Plating | - |
