Phoenix Contact
| Part Number | 1821096 | Manufacturer | Phoenix Contact |
|---|---|---|---|

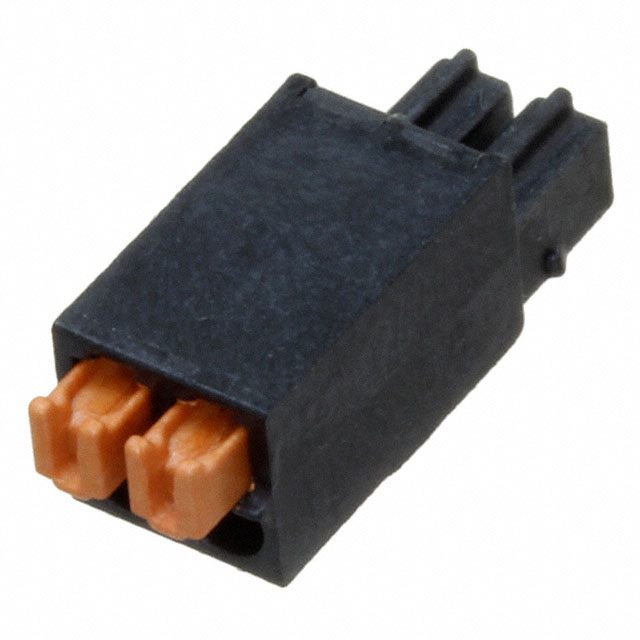

| Description | TERM BLOCK PLUG 2POS STR 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24884 pcs | Data sheet | 1.1821096.pdf2.1821096.pdf |
| Wire Strip Length | 7mm | Wire Gauge or Range - mm² | 0.14-0.5mm² |
| Wire Gauge or Range - AWG | 20-26 AWG | Voltage - UL | 150V |
| Voltage - IEC | 160V | Type | Plug, Female Sockets |
| Torque - Screw | - | Termination Style | Screwless - Leg Spring, Push-In Spring |
| Series | MICRO-COMBICON FMC | Screw Size | - |
| Positions Per Level | 2 | Plug Wire Entry | 180° |
| Pitch | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 1821096-ND 277-14104 FMC 0 5/ 2-ST-2 54 |
Operating Temperature | - |
| Number of Positions | 2 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.213" (5.40mm) |
| Ingress Protection | - | Housing Material | Liquid Crystal Polymer (LCP) |
| Header Orientation | - | Features | - |
| Detailed Description | 2 Position Terminal Block Plug, Female Sockets 0.100" (2.54mm) 180° Through Hole | Current - UL | 6A |
| Current - IEC | 6A | Contact Tail Length | - |
| Contact Mating Finish | Gold | Contact Material | - |
| Color | Black |
