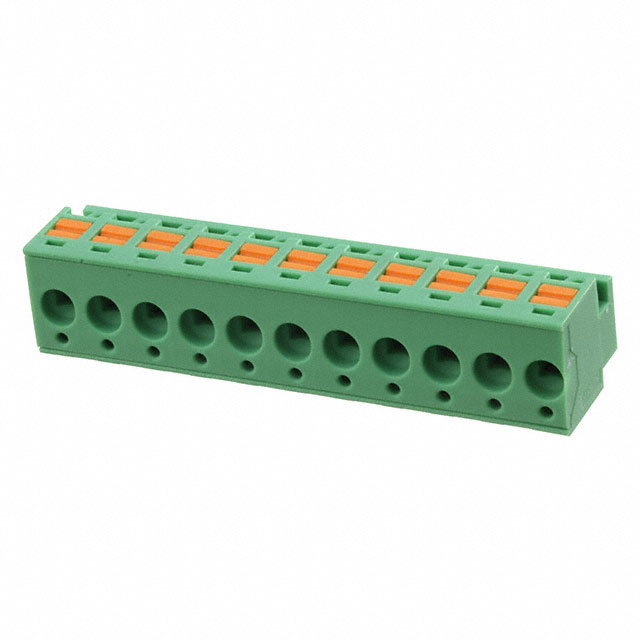

Phoenix Contact
| Part Number | 1805601 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 11POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39238 pcs | Data sheet | 1.1805601.pdf2.1805601.pdf |
| Wire Strip Length | 8mm | Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Wire Gauge or Range - AWG | 14-26 AWG | Voltage - IEC | 600V |
| Type | Plug for Unshrouded Header | Torque - Screw | - |
| Termination Style | Screwless - Spring Cage, Tension Clamp | Series | COMBICON PTS |
| Screw Size | - | Positions Per Level | 11 |
| Plug Wire Entry | 90° | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 1805601-ND 277-14081 PTS 1 5/11-PH-5 0 |
| Operating Temperature | - | Number of Positions | 11 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.461" (11.70mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | - | Detailed Description | 11 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Free Hanging (In-Line) |
| Current - IEC | 10A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
