Phoenix Contact

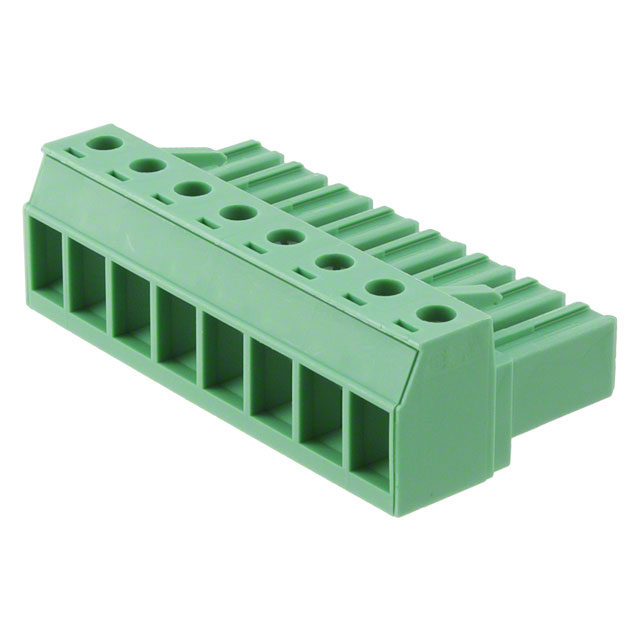

| Part Number | 1804962 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 8POS STR 7.62MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4535 pcs | Data sheet | 1804962.pdf |
| Wire Strip Length | 7mm | Wire Gauge or Range - mm² | 0.2-4mm² |
| Wire Gauge or Range - AWG | 10-30 AWG | Voltage - UL | 600V |
| Voltage - IEC | 1kV | Type | Plug, Female Sockets |
| Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) | Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Series | COMBICON PC | Screw Size | M3 |
| Positions Per Level | 8 | Plug Wire Entry | 180° |
| Pitch | 0.300" (7.62mm) | Packaging | Bulk |
| Other Names | 1804962-ND 277-5967 PC4/8-ST-7,62 |
Operating Temperature | - |
| Number of Positions | 8 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.713" (18.10mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | Retention Latches (Non-Wire Side) |
| Detailed Description | 8 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line) | Current - UL | 5A |
| Current - IEC | 20A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
