Phoenix Contact
| Part Number | 1788198 | Manufacturer | Phoenix Contact |
|---|---|---|---|

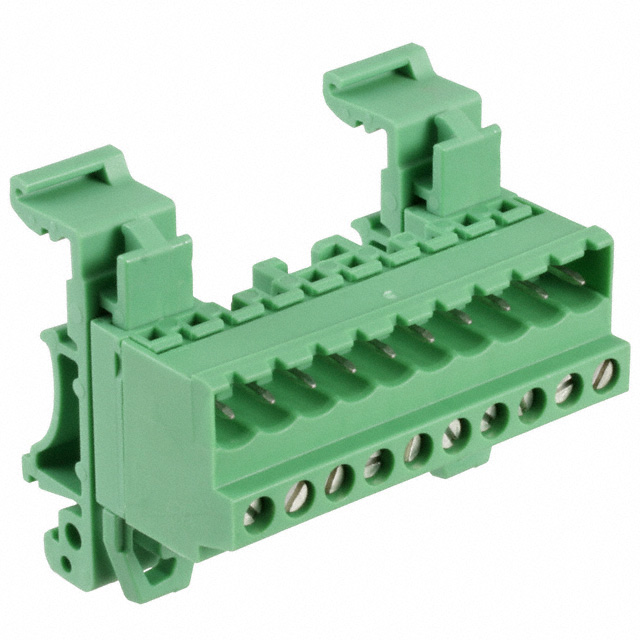

| Description | TERM BLK PLUG 10POS 42.5MM GREEN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4093 pcs | Data sheet | 1788198.pdf |
| Wire Gauge or Range - mm² | 0.2-2.5mm² | Wire Gauge or Range - AWG | 12-30 AWG |
| Voltage - UL | 300V | Voltage - IEC | 300V |
| Type | Plug Connection - Ganged | Termination Style | Plug Receptacles, Screw |
| Terminal - Width | 42.5mm | Stripping Length | 7mm |
| Series | COMBICON UMSTBVK | Other Names | 1788198-ND 277-5981 UMSTBVK 2,5/10-G-5,08 UMSTBVK2,5/10-G-5,08 |
| Operating Temperature | - | Number of Positions | 10 |
| Number of Levels | 1 | Mounting Type | DIN Rail |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 2 Weeks |
| Length | 2.060" (52.32mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Color | Green | Height (Max) | 1.984" (50.40mm) |
| Features | - | Detailed Description | 10 Position Terminal Block Green Plug Connection - Ganged 42.5mm |
| Current - UL | 12A | Current - IEC | 12A |
