Phoenix Contact
| Part Number | 1787289 | Manufacturer | Phoenix Contact |
|---|---|---|---|

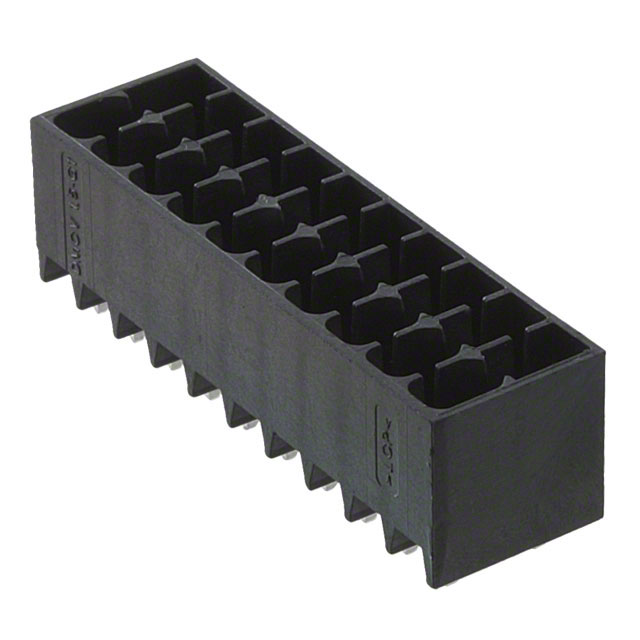

| Description | TERM BLOCK HDR 20POS VERT 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17410 pcs | Data sheet | 1787289.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 150V |
| Voltage - IEC | 250V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | COMBICON DMCV | Screw Size | - |
| Positions Per Level | 10 | Plug Wire Entry | - |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 1787289-ND 277-8755 DMCV1,5/10-G1-3,5P20THR DMCV1510G135P20THR |
Operating Temperature | - |
| Number of Positions | 20 | Number of Levels | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.394" (10.00mm) | Ingress Protection | - |
| Housing Material | Liquid Crystal Polymer (LCP) | Header Orientation | Vertical |
| Features | - | Detailed Description | 20 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole |
| Current - UL | 8A | Current - IEC | 8A |
| Contact Tail Length | 0.079" (2.00mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | Black |
