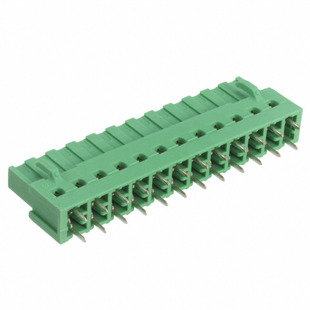

Phoenix Contact
| Part Number | 1786048 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 12POS VERT 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8110 pcs | Data sheet | 1786048.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Voltage - IEC | 630V | Type | Header, Female Sockets |
| Torque - Screw | - | Termination Style | Solder |
| Series | COMBICON ICV | Screw Size | - |
| Positions Per Level | 12 | Plug Wire Entry | - |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 1786048-ND 277-6890 ICV2,5/12-G-5,08 |
Operating Temperature | - |
| Number of Positions | 12 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.748" (19.00mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | Vertical | Features | Retention Latches |
| Detailed Description | 12 Position Terminal Block Header, Female Sockets 0.200" (5.08mm) Vertical Through Hole | Current - UL | 10A |
| Current - IEC | 12A | Contact Tail Length | 0.142" (3.60mm) |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Green |
