Phoenix Contact
| Part Number | 1780507 | Manufacturer | Phoenix Contact |
|---|---|---|---|

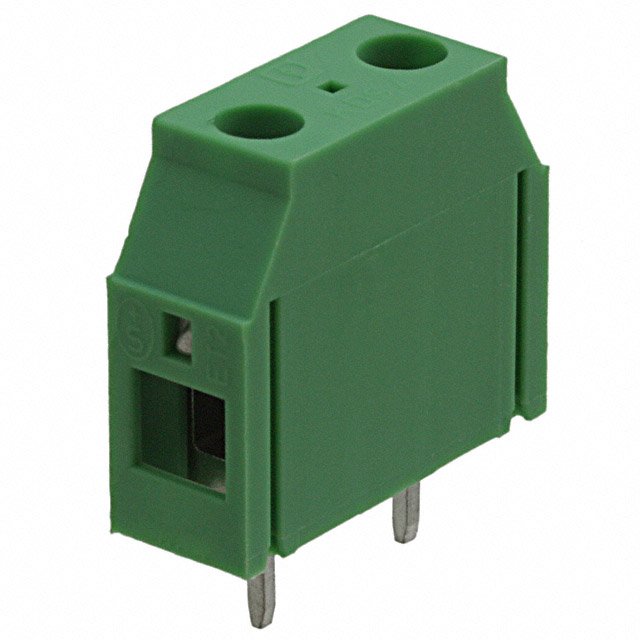

| Description | TERMINAL BLOCK SINGLE 7.5MM GRN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29817 pcs | Data sheet | 1780507.pdf |
| Wire Termination | Screw - Rising Cage Clamp | Wire Gauge | 10-30 AWG |
| Voltage | 300V | Torque - Screw | 0.6-0.8 Nm (5.3-7.1 Lb-In) |
| Series | COMBICON KDS | Screw Thread | M3 |
| Screw Material - Plating | - | Positions Per Level | 1 |
| Pitch | - | Packaging | Bulk |
| Other Names | 1780507-ND 277-5960 KDS4 |
Operating Temperature | - |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Orientation | Horizontal with Board |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA), Nylon | Features | Feed Through, Interlocking (Side) |
| Detailed Description | 1 Position Wire to Board Terminal Block Horizontal with Board Through Hole | Current | 30A |
| Contact Material - Plating | - | Color | Green |
| Clamp Material - Plating | - |
