Phoenix Contact
| Part Number | 1778845 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 3POS STR 2.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 90453 pcs | Data sheet | 1778845.pdf |
| Wire Strip Length | 6mm | Wire Gauge or Range - mm² | 0.14-0.5mm² |
| Wire Gauge or Range - AWG | 20-26 AWG | Voltage - UL | 150V |
| Voltage - IEC | 320V | Type | Plug, Female Sockets |
| Torque - Screw | - | Termination Style | Screwless - Spring Cage, Tension Clamp |
| Series | COMBICON PTSM | Screw Size | - |
| Positions Per Level | 3 | Plug Wire Entry | 180° |
| Pitch | 0.098" (2.50mm) | Packaging | Bulk |
| Other Names | 277-2323 PTSM0,5/3-P-2,5 |
Operating Temperature | - |
| Number of Positions | 3 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.197" (5.00mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | - |

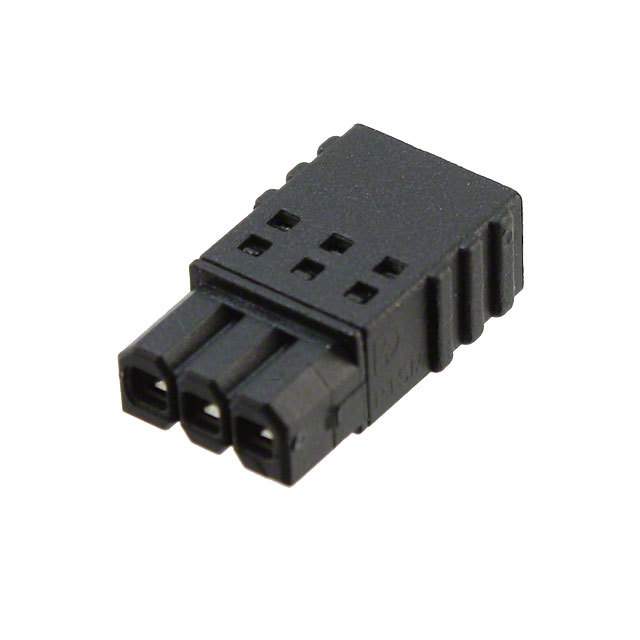

| Detailed Description | 3 Position Terminal Block Plug, Female Sockets 0.098" (2.50mm) 180° Free Hanging (In-Line) | Current - UL | 5A |
| Current - IEC | 6A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | Black |
