1772382

Phoenix ContactPhoenix Contact

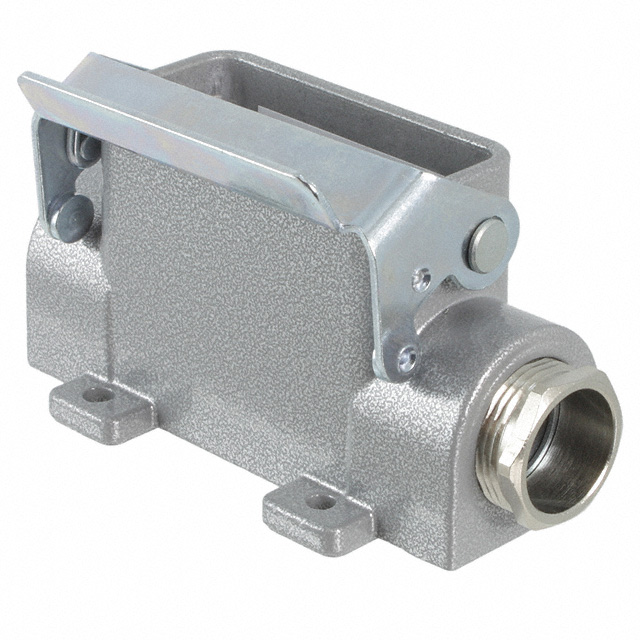

1772382 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 1772382
Manufacturer/Brand: Phoenix Contact
Product description CONN BASE SIDE ENTRY SZD15 PG16
Datasheets:
RoHs Status Lead free / RoHS Compliant
Stock Condition 3235 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 3235 pcs
Reference Price (In US Dollars)
1 pcs
$9.363
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$9.363

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 1772382

Part Number 1772382 Manufacturer Phoenix Contact
Description CONN BASE SIDE ENTRY SZD15 PG16 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 3235 pcs Data sheet
Thread Size PG16 Style Side Entry
Size / Dimension 3.661" L x 1.969" W x 2.047" H (93.00mm x 50.00mm x 52.00mm) Size D15
Series HEAVYCON® D Packaging Bulk
Other Names 277-7342
HC-D15-SML-52/M1PG16
HCD15SML52M1PG16		 Operating Temperature -40°C ~ 125°C
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lock Location Locking Clip (1) on Base Bottom
Lead Free Status / RoHS Status Lead free / RoHS Compliant Ingress Protection IP65 - Dust Tight, Water Resistant
Housing Material Aluminum, Die Cast Housing Finish Powder Coated
Housing Color Gray Features -
Connector Type Base - Box Mount
