Phoenix Contact

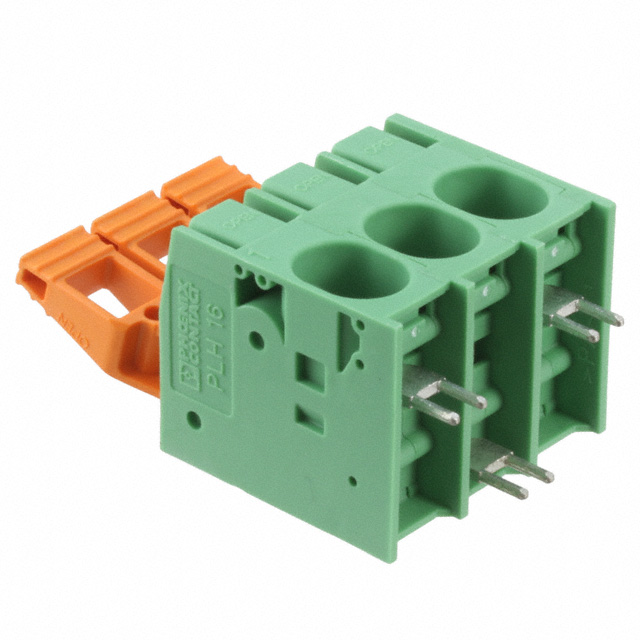

| Part Number | 1770474 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | PCB TERM BLOCK 3POS 10MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7317 pcs | Data sheet | 1770474.pdf |
| Wire Termination | Screwless - Spring Cage, Tension Clamp | Wire Gauge | 4-18 AWG |
| Torque - Screw | - | Series | COMBICON PLH |
| Screw Thread | - | Screw Material - Plating | - |
| Positions Per Level | 3 | Pitch | 0.394" (10.00mm) |
| Packaging | Bulk | Other Names | 1770474-ND 277-8702 PLH 16/ 3-10-ZF PLH16/3-10-ZF |
| Operating Temperature | - | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Horizontal with Board | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA), Nylon |
| Features | Interlocking (Side), Lever Actuated | Detailed Description | 3 Position Wire to Board Terminal Block Horizontal with Board 0.394" (10.00mm) Through Hole |
| Contact Material - Plating | - | Color | Green |
| Clamp Material - Plating | - |
